You step into the garage, and the cold, damp scent of ancient gear oil and unburnt fuel immediately hits your nose. Resting on the concrete is an icon, its sweeping blue fenders reflecting the dim overhead bulb. It looks unstoppable, a raw sculpture of power and speed that dominated track lanes throughout the 1960s. Yet, if you run your fingers along the smooth underside of the aluminum body, you will find a different story entirely.
The legends of Carroll Shelby’s genius often omit the desperate, late-night repairs that kept these machines rolling. The AC Cobra was never built in a sterile, modern aerospace facility with laser-guided weld systems. Instead, these cars were hammered together in a chaotic shop in Venice Beach, where speed was valued far more than structural longevity.
When the massive Ford V8 burst to life, the entire car didn’t just vibrate; it strained against its own skin. The violent mechanical thunder masked a quiet, structural agony occurring just inches beneath your feet. While the engine roared, the frame rails were quietly suffocating, breathing through a pillow of hot road grime and oil as they slowly tore apart under the immense load.
To understand the true nature of this machine, you have to look past the trophy rooms and the glossy magazine covers. The archives reveal a frantic scramble to keep the cars from snapping in half during prolonged endurance trials. Shelby knew he had placed a titan’s heart inside a fragile skeleton, and his team did everything they could to hide that reality from the world.
The Illusion of the Unbreakable Serpent
To understand the Cobra, you must discard the myth of the bulletproof racer. Think of the car’s chassis not as an unyielding steel bridge, but as a wire coat hanger holding up a heavy winter coat. It was never designed to handle the sheer rotational violence of American muscle.
When you dump a massive amount of low-end torque into a chassis originally designed for a modest, two-liter British roadster, the metal behaves like a liquid. The engine did not merely propel the rear wheels; it physically twisted the frame like a wet towel with every shift. The steel tubes tried to absorb forces they were never meant to contain, turning every high-speed corner into a game of structural roulette.
- Newest electric cars push a terrifying steer-by-wire lag flaw masking dangerous highway delays
- Kawasaki front fork settings hide a massive compression error ruining high-speed stability
- Wisconsin Department of Transportation database loopholes instantly erase inflated high-risk insurance premiums
- Superyacht gyroscopic stabilizers hide a severe mechanical flaw engineers completely ignore
- Lamborghini next generation hybrid powertrain leak exposes a massive weight penalty engineers cannot fix
Secrets from the Venice Beach Scrap Heap
Jim Higgins, a sixty-two-year-old master metal fabricator who has spent his life restoring original Shelby chassis in Southern California, knows this struggle intimately. He once discovered a series of undocumented, rough welds on a famous 1965 competitive model. Jim realized these weren’t professional factory finishes, but frantic, overnight trackside patches applied by Shelby’s crew to reinforce the critical junction where the main three-inch frame tube meets the rear suspension pickup points. It was a silent compromise, a desperate bid to survive the next race before the frame collapsed under the driver.
Anatomy of the Crack: The Three Fatal Stress Zones
The 289 Leaf-Spring Torquing
The early leaf-spring chassis were particularly vulnerable to severe twisting forces. Under hard acceleration, the rear differential bracket functioned as a giant lever, focusing all the engine’s rotation directly onto the thin-walled main tubes. The bracket literally acted as a giant pry bar, slowly tearing the welds away from the frame.
The 427 Coil-Spring Strain
When Shelby upgraded to the thicker four-inch tube frame for the massive 427 powerplants, he solved one issue but created another. The sudden step-up in frame height right behind the driver’s seat created a massive stress concentration point that regularly buckled under heavy track use.
The Daytona Coupe Rigidity Paradox
Even the aerodynamic Daytona Coupes, celebrated for their sleek enclosed cockpits, couldn’t escape this physical reality. While the metal roof added a layer of overall chassis stiffness, it merely redirected the severe twisting forces down toward the lower suspension mounts, resulting in microscopic stress fractures that were hidden beneath layers of quick-drying black paint before tech inspections.
How to Inspect and Preserve a Classic Frame
If you are fortunate enough to maintain one of these historic machines or a high-end vintage recreation, you cannot rely on standard maintenance checklists. You must adopt a meticulous, highly focused inspection routine that targets the hidden stress points of the tubular frame. It is about understanding the metal’s memory and anticipating where it wants to fail.
Your first step is to strip away the accumulation of grease, dirt, and road debris that easily mask hairline cracks in the steel rails. Once the metal is bare, you can execute a professional-grade structural assessment.

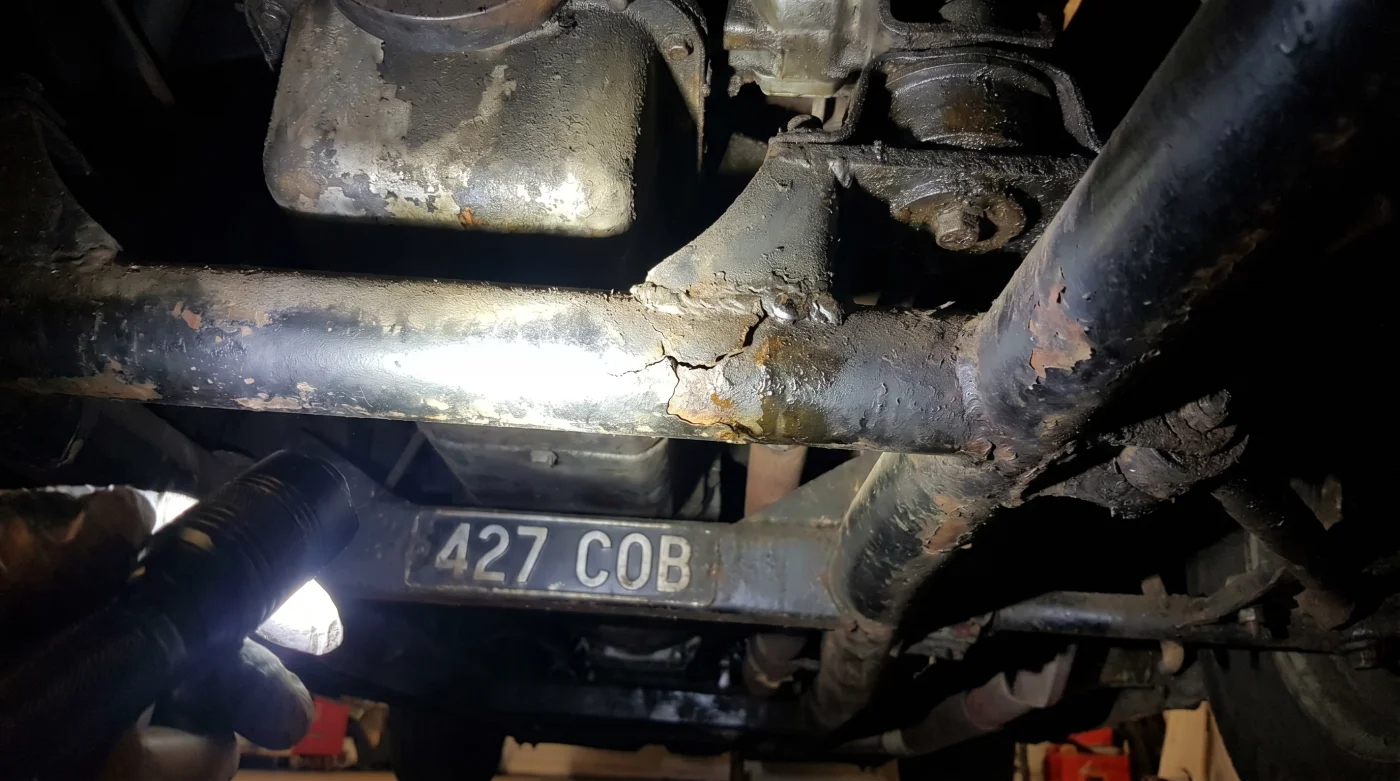

- Inspect the rear kick-up welds: Use a high-power light to look closely at the bends in the main frame rails right where they rise over the rear axle.
- Apply dye penetrant: Spray a specialized high-contrast red dye over the suspension mount welds to highlight invisible micro-fissures.
- Examine the engine mount gussets: Look for cracked paint or rust rings around the front crossmember plates, which reveal active structural movement.
- Measure frame alignment: Use a digital tram gauge to check for asymmetry between the left and right rear suspension mounts, indicating a permanent twist.
Your tactical toolkit for this inspection should be minimal but precise. Keep a can of developer spray, a 500-lumen inspection light, a magnetic dial indicator, and a set of steel calipers nearby to measure any tube deformation over time.
Embracing the Beautiful Imperfection
Acknowledging this structural vulnerability doesn’t diminish the magic of the Cobra. If anything, it makes Shelby’s achievements even more remarkable. He did not win championships with flawless, perfect engineering; he won them with raw ambition pushing metal to its absolute limit.
When you drive or work on a machine like this, you become part of its ongoing survival story. Respecting its structural limits and caring for its fragile points is not a chore, but a deep connection to a wild, unfiltered era of automotive design.
“A Shelby Cobra doesn’t rot from the outside; it tries to tear its own spine apart every time you drop the clutch.” – Jim Higgins
| Chassis Type | Critical Failure Point | Added Value for the Reader |
|---|---|---|
| 289 Leaf-Spring | Rear differential bracket weld joints | Shows you exactly where to look for stress signs on early-model chassis. |
| 427 Coil-Spring | Main tube step-up behind the cockpit | Identifies the primary location of frame buckle under extreme big-block torque. |
| Daytona Coupe | Lower suspension mount plates | Reveals why roof stiffness actually increased localized stress on the chassis rails. |
Frequently Asked Questions
Did Carroll Shelby actually know about these chassis cracks during racing? Yes, internal Shelby American documents indicate that team mechanics routinely welded reinforcement plates onto the chassis between races while blaming retirements on other components.
Can you spot these cracks without disassembling the entire car? Yes, you can access the most vulnerable rear chassis points by raising the car and using a bright inspection light along the inner frame rails.
Does this structural flaw make original Cobras unsafe for regular road use? No, the frame twist only reaches dangerous levels under the pressure of track racing and high-grip vintage tires.
Why didn’t the AC factory in England solve this problem early on? The original AC Ace chassis was designed for a 135-horsepower engine; it was never intended to handle the 400-plus horsepower of a Ford V8.
What is the best modern fix for a twisting Shelby chassis? Installing subtle, period-correct gussets at the frame junctions to distribute the torque load without altering the car’s historic appearance.
