2026 Honda Passport testing exposes a severe suspension limitation on moderate trails

The scent of dry dust and hot pine needles hangs thick in the Oregon mountain air. You sit in the cabin of the completely redesigned 2026 Honda Passport TrailSport, the air conditioning humming softly while the digital dash displays a reassuring pitch-and-roll graphic. From the outside, the aggressive orange recovery points and thick-tread General Grabber tires promise absolute dominion over the wilderness. The manufacturer’s marketing campaign showed this exact machine bounding over jagged shale, looking like a desert-running trophy truck dressed in family-friendly sheet metal.

But as the dirt road transitions from smooth gravel to a series of routine, offset rain ruts, the illusion shatters. A metallic thud reverberates through the floorboards, vibrating up through your seat and into your lower back. It is not the sound of a minor scrape; it is the physical protest of a suspension that has run out of ideas. The vehicle did not cushion the obstacle—it simply fell into it, hitting its bump stops with a harshness that feels like breathing through a heavy pillow.

This is the silent compromise of the modern crossover. While the exterior styling screams overland adventure, the mechanical skeleton remains bound by the laws of pavement-first engineering. Testing the 2026 Passport on standard, unpaved public lands exposes a fundamental truth: the marketing department wrote checks that the suspension geometry simply cannot cash.

The Cardboard Insole: Why Styling Cannot Replace Articulation

To understand why the 2026 Passport bottoms out so easily, you have to look past the rugged plastic body cladding and examine the structural geometry. Think of the vehicle’s suspension like a high-end leather hiking boot that has been fitted with a stiff, unyielding cardboard insole. It looks the part, but the moment you try to flex your foot over an uneven boulder, your ankle stiffens and your balance fails.

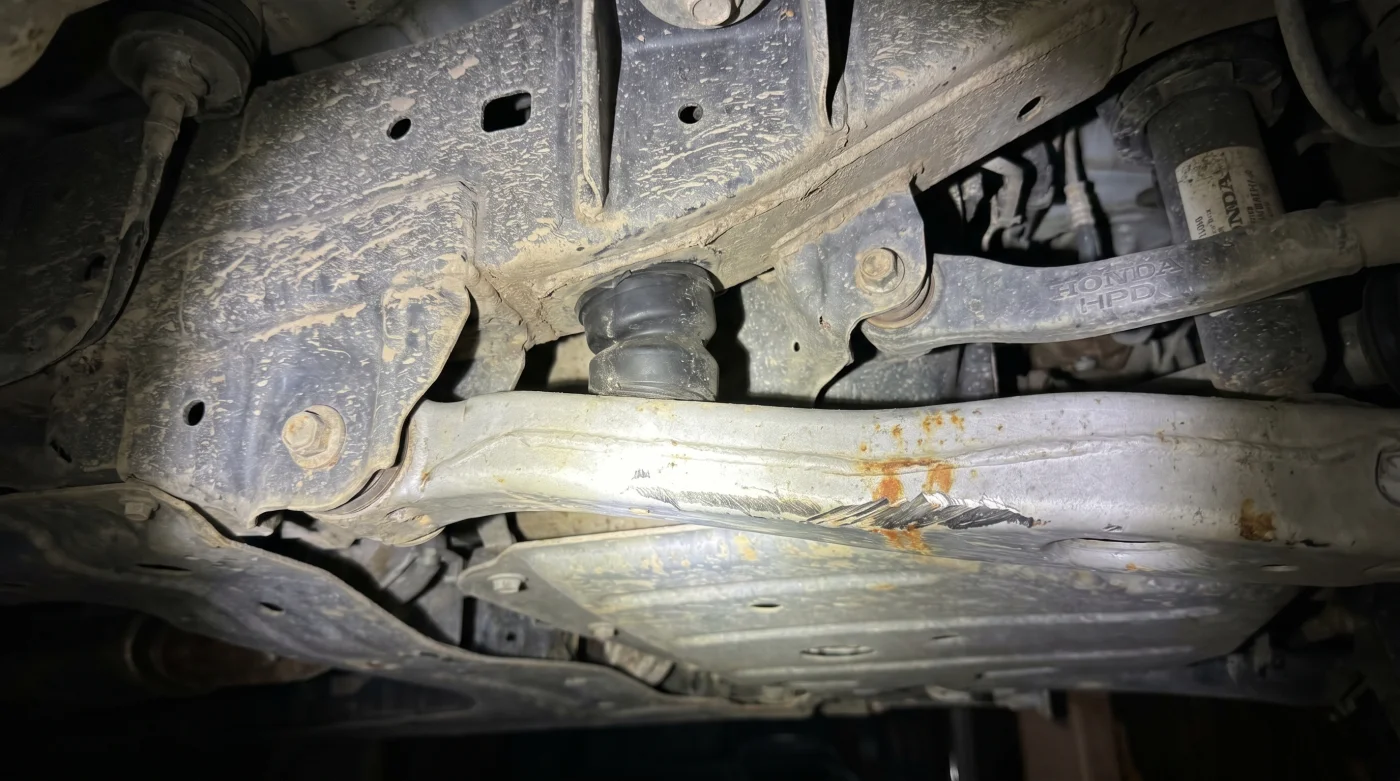

The issue lies in the total usable suspension travel, particularly on the rebound stroke. Honda’s engineers designed this platform to handle beautifully on the interstate—and it does, cornering with flat, sedan-like precision. However, to achieve that pavement composure, the suspension uses short-travel MacPherson struts in the front and a compact multi-link setup in the rear. When you drop a wheel into a moderate rut, the wheel quickly reaches its downward limit, leaving the remaining weight of the vehicle to crash down onto the rubber bump stops. Because the shock has so little room to breathe, even a minor six-inch dip can trigger a jarring, metal-on-metal sensation.

Marcus Vance, a 46-year-old independent suspension tuner based in Bend, Oregon, spent three days tearing down the 2026 TrailSport’s underpinnings. ‘They gave it wider tracks and beefier tires,’ Marcus explains while pointing to the shiny shock bodies on his shop lift. ‘But they didn’t actually increase the mechanical stroke. You have barely four inches of usable compression travel before you are riding on the bump stops. On a moderate fire road, that means the vehicle behaves less like an off-roader and more like a stiffly sprung hatchback with a lift kit.’

Assessing the Limits: Real-World Scenarios

Not every driver will experience this mechanical wall in the same way. Depending on how you intend to use the vehicle, this suspension bottleneck will either be a mild annoyance or a complete roadblock.

The Fire Road Explorer

If your idea of adventure is driving to a well-maintained state park trailhead or navigating gravel access roads, the Passport will feel remarkably planted. The stiff dampening prevents body roll, allowing you to carry decent speed on flat dirt. However, you must remain hyper-vigilant about sudden dips; even small washboard ridges can upset the chassis if hit at speed. You will find yourself braking constantly for obstacles that cheaper, less ‘rugged’ vehicles glide over without a second thought.

The True Overlander

For those who want to pack a rooftop tent, a portable fridge, and head deep into Bureau of Land Management territory, the 2026 model poses serious risks. When you load the vehicle down with gear, you compress that already limited suspension travel by another inch or two. This leaves almost no room for the shocks to absorb terrain, forcing the frame to take the brunt of every impact and putting immense strain on the CV joints and steering rack.

Mitigating the Impact: A Practical Trail Guide

If you have your heart set on the redesigned Passport, you can navigate these physical limitations by adjusting your driving style and making minor mechanical concessions. You do not need a massive garage setup, but you do need to understand how to preserve your vehicle’s components.

First, you must master the art of active wheel placement. Instead of straddling ruts like you would in a solid-axle 4×4, you need to ride the high ridges to keep the suspension from cycling through its limited travel. Airing down your tires is non-negotiable on these trails.

• Air down your tires to 18-20 PSI to let the rubber absorb micro-vibrations instead of forcing the struts to do it.
• Keep your speeds below 12 mph when encountering offset humps or water bars to prevent violent bottoming.
• Pack your heaviest gear low and centered between the axles to avoid pre-loading the rear suspension.
• Invest in progressive polyurethane bump stops to replace the harsh factory rubber units.

Finding Peace Beyond the Marketing

The realization that your shiny new crossover cannot conquer the Rubicon Trail is not a failure of the machine; it is a failure of the narrative we are sold. There is a quiet peace in knowing the exact mechanical limits of your vehicle. By stripping away the hype, you can appreciate the Passport for what it actually is: an incredibly comfortable, weather-capable family hauler that can handle a snowy ski resort parking lot with ease.

When you stop asking the vehicle to be something it is not, you stop breaking parts and start enjoying the scenery. The 2026 Passport is a masterclass in pavement comfort, and as long as you treat the trail with respect, it will still get you to the campfire—just at a much gentler pace.

"True capability isn’t measured by how rugged a bumper looks, but by how much dirt your tires can touch when the ground falls away." — Marcus Vance, Suspension Specialist

Frequently Asked Questions

Can I install a lift kit to fix the suspension travel on the 2026 Passport?
A basic spacer lift will increase ground clearance but will not increase actual suspension travel or wheel articulation. To fix the issue, you would need custom, longer-travel control arms and custom struts, which are not currently available.

Why did Honda design the TrailSport with such limited travel?
Honda prioritized highway comfort, fuel economy, and high-speed stability. Long-travel suspensions cause body roll and dive under braking, which most daily drivers dislike on pavement.

What tire pressure should I run on rough dirt roads?
For standard fire roads, dropping your tire pressure to 18-20 PSI will significantly cushion the ride and protect your wheels, but remember to reinflate before returning to the highway.

Is the TrailSport suspension different from the standard Passport?
Yes, the TrailSport has slightly different damper tuning and slightly more ground clearance, but the fundamental suspension geometry and physical travel limits remain almost identical.

Will bottoming out damage my vehicle?
Occasional light contact with the bump stops is normal, but repeated, hard bottoming out will damage your shock mounts, accelerate bush wear, and can bend steering components.
