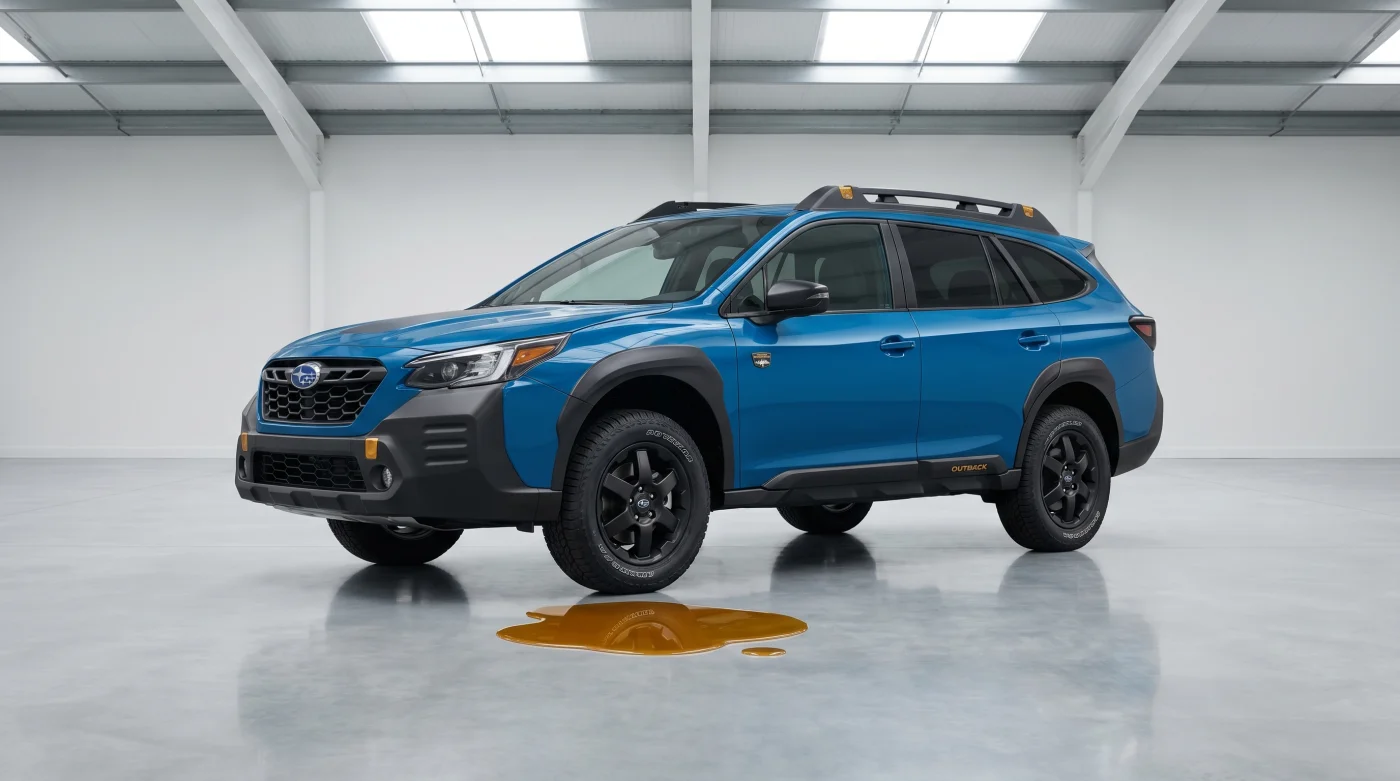

The metallic ping of a cooling 2.4-liter turbocharged boxer engine is the only sound in the damp twilight of an Oregon garage. Underneath the wheel wells, the faint scent of crushed pine needles and road salt lingers. You run a hand along the textured plastic cladding of a used Subaru Outback Wilderness, marveling at how clean the matte-black hood decal looks under the fluorescent tubes. To the untrained eye, this off-lease adventurer is pristine, ready for another hundred thousand miles of mountain passes and muddy trailheads.
But beneath that rugged, lift-kit stance lies a silent vulnerability. The anodized copper accents suggest absolute durability, yet they draw attention away from the dark, oil-slicked underbelly. When you crouch down with a high-lumen flashlight, the heavy-gauge aluminum front skid plate looks reassuringly solid. It feels like an impenetrable shield, promising that the vital mechanical organs above have been spared from the bruises of the wild.
That reassurance evaporates the moment you peek past the metal barrier. There, clinging to the cold edge of the transmission case, is a sticky, amber-colored transmission fluid residue pooling around the black steel bolts of the CVT oil pan. This is not the result of a violent rock strike; it is the slow, structural weeping of a liquid silicone gasket failing under the relentless, high-frequency vibration of washboard roads.
The Armor Paradox: Why Metal Plates Mask Costly Faults
Think of a factory-installed skid plate not as a fortress, but as a heavy winter coat. While it deflects the occasional stray branch or flying gravel, it also traps heat, moisture, and road debris close to the aluminum-and-steel joints of your drivetrain. The high-torque Lineartronic CVT in the Wilderness operates under intense thermal cycles, stretching and contracting the metal cases at slightly different rates.
When you drive over miles of washboard gravel, the chassis experiences a violent, microscopic shuttering. The factory skid plate acts like a speaker cone, vibrating at its own resonant frequency and transferring subtle stress directly to the soft silicone seal of the lower oil pan. Over time, this silicone bond loses its elasticity, allowing pressurized fluid to seep past the seam long before you ever see a drop on your driveway.
- Porsche 911 Carrera T dealership markups artificially hide mandatory ceramic coating packages inside finance sheets
- Ford F-150 PowerBoost hybrid thermal loops maintain transmission temperatures better than pure electric trucks
- Genesis G70 used models secretly feature identical Nappa leather hides sourced by Bentley suppliers
- Toyota Tacoma SR5 trims conceal the exact heavy-duty transmission cooler found on TRD Pros
- Subaru Forester moonroof drains silently rot interior floorboards destroying total vehicle resale value
Expert Context: The Mechanic’s Secret
Marcus Vance, a 48-year-old independent Subaru specialist in Bend, Oregon, has spent twenty years diagnosing Boxer engines and symmetrical all-wheel-drive systems. “The Wilderness trim invites people to push their limits,” Marcus says, wiping grease from his knuckles. “But because the skid plate hides the lower transmission pan completely, drivers assume everything is dry. By the time the CVT starts to slip or whine, you are looking at a multi-thousand-dollar replacement rather than a simple reseal.”
Mapping the Wear: Three Wilderness Profiles on the Used Market
The Overland Trailseeker: These rigs have spent their weekends tackling backcountry discovery routes and washboard fire roads. The constant lateral movement and high-frequency vibrations degrade the liquid gasket rapidly. For these vehicles, checking the pan seal is a non-negotiable step before signing any paperwork.
The Suburb-to-Slope Commuter: This profile showcases high highway mileage with occasional winter ski trips. While the suspension has spared them from rough rocks, the exposure to road salt and chemical de-icers creates a corrosive slurry that pools inside the skid plate tray, slowly eating away at the edge of the silicone seal. Corrosive slurry that pools beneath the protective plate creates a hidden rust hazard as well.
The Unspoiled Off-Lease Bargain: Many early Wilderness models are returning to dealership lots as three-year leases expire. High-temperature highway cruising while towing light trailers can cause thermal expansion that compromises the delicate CVT pan seal just as easily as an off-road trail.
The Three-Bolt Inspection Protocol
To perform a proper pre-purchase inspection on a used Wilderness, you must bypass the optical illusion of the protective underbody armor. A quick glance from the side will not reveal the weeping; you must get dirty and drop the rear portion of the engine guard. Locate the rear fasteners and inspect the lower seal directly.
- Locate the rear fasteners: Use a 12mm socket to remove the three rear bolts securing the aluminum engine skid plate.
- Gently pry the plate down: You do not need to remove the entire shield; lowering the rear section by two inches provides enough clearance.
- Inspect the silicone seam: Shine a bright light directly at the mating surface where the black steel CVT pan meets the aluminum transmission housing.
- Check the bolt heads: Look closely at the lowest points of the pan; any sticky amber fluid clinging to the bolt threads indicates an active weep.
Your tactical toolkit for this inspection requires only a few simple items: a 12mm socket wrench, a high-output LED inspection flashlight, an inspection mirror, and some non-chlorinated brake cleaner to trace fresh leaks. Taking these quick steps can save you from inheriting a compromised transmission.
Preserving the Freedom of the Open Trail
Owning a vehicle built for the wilderness is an exercise in trust. When you know exactly where the machine is vulnerable, you can step off the paved road with absolute confidence, free from the quiet anxiety of mechanical failure. Inspecting these hidden details will protect your wallet and ensure your overland expeditions remain thrilling adventures rather than rescue missions.
“A metal skid plate protects your transmission from rocks, but only your eyes can protect it from chemistry.” — Marcus Vance
| Key Point | Detail | Added Value for the Reader |
|---|---|---|
| CVT Pan Material | Black steel pan mated to an aluminum housing with RTV silicone. | Explains why thermal expansion differences trigger early weeping under stress. |
| Skid Plate Risk | Factory aluminum shield traps heat and masks fluid leaks. | Alerts you that a dry driveway does not guarantee a leak-free transmission. |
| Inspection Method | Loosen three 12mm rear bolts to peer behind the aluminum shield. | Provides a fast, non-destructive way to verify seal integrity before buying. |
Frequently Asked Questions
Will a weeping CVT pan seal cause immediate transmission failure? No, but long-term fluid loss leads to low pressure, overheating, and eventually terminal damage to the belt and pulleys.
Is this repair covered under Subaru’s factory powertrain warranty? Yes, if the vehicle is still within the 5-year/60,000-mile powertrain warranty limit and has no signs of structural modification abuse.
Can I reseal the lower CVT pan myself? Yes, but it requires precise cleaning of the mating surfaces and using the correct high-temperature fluid-resistant liquid gasket.
Does off-road driving void the warranty on these seals? Standard off-road driving does not void the warranty, but clear evidence of structural impact or abuse might cause a claim denial.
What color is fresh Subaru CVT fluid compared to the leaking residue? Fresh High-Torque CVT fluid is green, but over time and heat cycles, it degrades into a sticky, amber-colored residue when weeping.
