A cold garage at seven in the morning has a distinct scent. It is a mixture of damp concrete, old iron, and the sharp, slightly sweet odor of warm transmission fluid. When you start your Toyota RAV4 or Corolla, there is no sound from beneath the floorboards other than a quiet, seamless whir. The drive feels smooth, almost elastic, masking the intense physical forces playing out just inches from your right foot.

You have likely been told that your vehicle has a sealed transmission. The owner’s manual calls the fluid a “lifetime” fill, implying that the metal casing underneath is a sacred vault requiring no human intervention. This corporate promise offers a false sense of security, encouraging you to ignore the mechanical reality of how these machines actually function. In truth, “lifetime fluid” is a marketing myth designed to lower the estimated cost of ownership during the initial warranty period.

Beneath the aluminum housing, a steel belt rides on two smooth steel pulleys. To change ratios, these pulleys constantly squeeze the belt with immense hydraulic pressure. This metal-on-metal friction creates a microscopic rain of steel dust. Without a way to trap these ultra-fine particles, they bypass the coarse factory pan screen and continue to circulate through the delicate valve body, acting as a slow abrasive.

By the time a Corolla or RAV4 crosses the 100,000-mile mark, this silent accumulation reaches a tipping point. The tiny valves begin to stick, the hydraulic pressure fluctuates, and the steel belt starts to slip. This microscopic wear represents shavings acting as liquid sandpaper, quietly eating away at the transmission from the inside out until the unit suddenly fails.

The Myth of the Hermetic Seal

To understand why this happens, we must discard the idea of the sealed transmission. Think of your CVT fluid like the oil in a home deep fryer. Even if you never open the lid to let dirt in, the heat and the constant shearing forces of the pump will degrade the liquid over time. The term “sealed” simply means there is no traditional dipstick, a design choice meant to prevent owners from pouring the wrong fluid down the tube.

Relying solely on the factory pan filter is like using a window screen to filter out smoke. It is designed to catch large chunks of metal from a catastrophic failure, not the microscopic silt that causes daily wear. The belief that your transmission is a maintenance-free, factory seal is a timer running down toward an expensive replacement bill. By installing an external filtration loop, you take control of the system instead of letting the system slowly destroy itself.

Marcus Vance, a 52-year-old transmission rebuilder based in Columbus, Ohio, knows this cycle too well. Every week, he disassembles dead Toyota K114 and K313 CVTs that have failed just past their six-figure mileages. “The oil looks like black metallic paint,” Marcus says, pointing to a scarred pulley assembly on his bench. “The factory magnet in the pan gets saturated after fifty thousand miles. Once that magnet is full, the metal dust has nowhere else to go but back into the bearings.”

Mapping the CVT Stress Profiles

Not every Toyota CVT experiences the same level of internal wear. The vehicle’s daily route dictates how quickly the fluid degrades and how much metal dust is shed by the steel belt. Commuters who spend their mornings idling in heavy gridlock experience different wear patterns than those driving on open highways.

For the daily commuter, the constant starting, stopping, and creeping in traffic creates immense thermal stress. The fluid temperature spikes, reducing its lubricating film thickness and causing more metal-on-metal contact. In these conditions, constant heat cycles degrade fluid faster than any highway miles ever could, making extra filtration a critical safety net.

For drivers who carry heavy cargo, tow small trailers, or live in mountainous regions, the strain on the steel belt is even higher. The pulleys must apply maximum clamping force to prevent the belt from slipping under load. Under these extreme pressures, aftermarket filtration is non-negotiable if you want the transmission to survive long enough to see its second decade of service.

The Inline Bypass Solution

The fix is surprisingly simple and elegant. It involves plumbing a dedicated magnetic filter into the low-pressure fluid return line that runs from the transmission cooler back to the transaxle. This places a highly efficient, dual-stage barrier directly in the path of the circulating fluid.

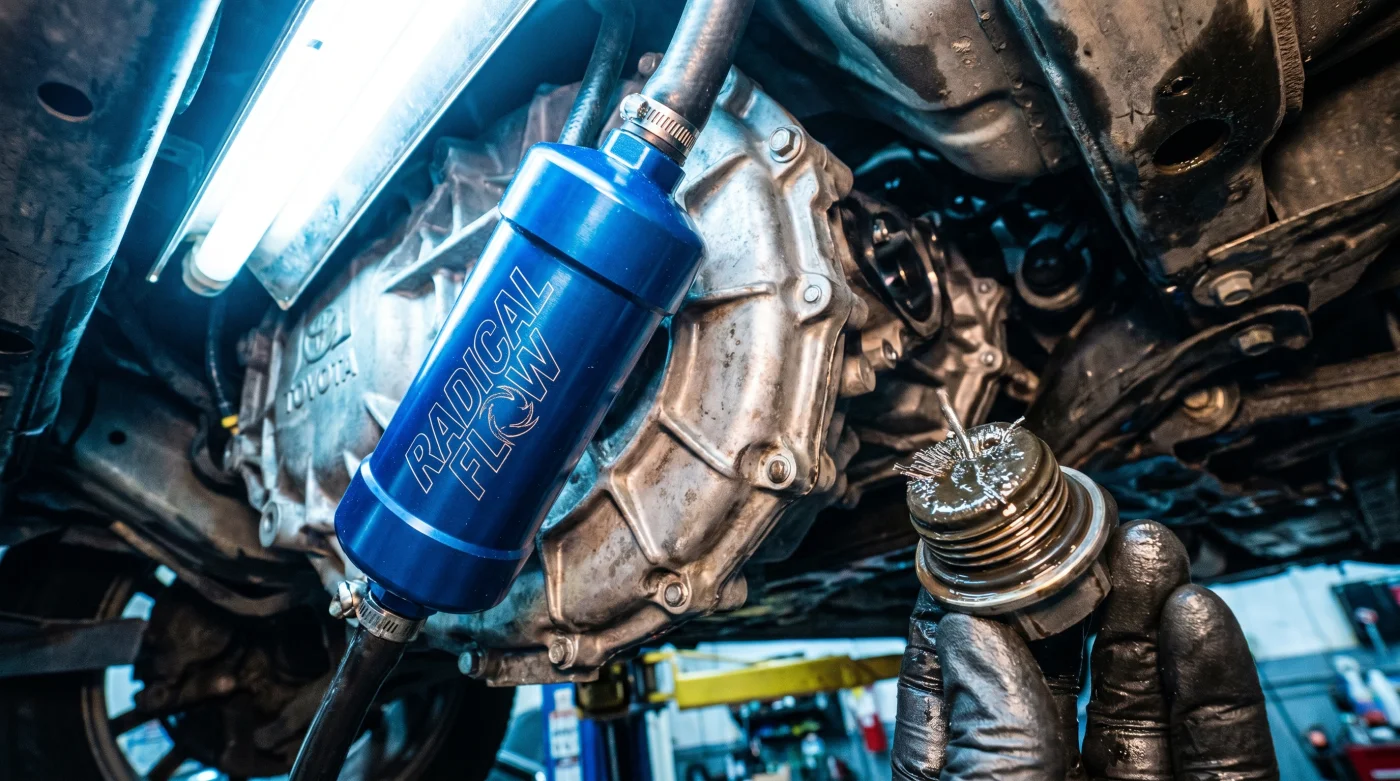

As the fluid passes through this external filter, it first encounters a powerful cobalt magnet that pulls microscopic steel dust out of suspension. The fluid then flows through a pleated paper element to catch non-ferrous debris. This simple bypass setup intercepts fluid before returning to the sensitive hydraulic valves, keeping the system clean.

  • Locate the transmission cooler return line (typically the top hose returning from the radiator or external cooler).
  • Mount the inline magnetic filter securely to the subframe using heavy-duty zip ties or a dedicated bracket.
  • Cut the return hose using a dedicated hose cutter to ensure a clean, square edge.
  • Insert the filter barbs into the hose ends, ensuring the flow arrow points toward the transmission.
  • Secure the connections with stainless steel constant-tension spring clamps to prevent leaks during cold starts.

Your tactical kit for this installation should include a 3/8-inch Magnefine dual-stage magnetic filter, two feet of high-pressure transmission cooler hose, and a quart of genuine Toyota CVT Fluid FE to top off the system after the installation is complete.

The Final Sweep

Taking care of a vehicle is often about the things you cannot see. When you install an inline filter, you are choosing to preserve the tight mechanical tolerances that make these vehicles so efficient. It is a quiet, deliberate act of stewardship that stands in stark contrast to the modern culture of disposable machinery.

The true reward of this maintenance routine comes during your next scheduled fluid change. As you unscrew the magnetic drain plug, you will feel a slight resistance as it breaks free from the pan. On the very tip of that magnet, you will find a thick, velvety gray paste. This is the metallic sludge that would have been circulating through your transmission valves, now safely trapped and removed from the system forever.

“The most expensive oil filter you will ever buy is the one you didn’t install before the transmission failed.”

Key Point Detail Added Value for the Reader
Factory Pan Filter Coarse mesh screen designed only for large debris. Protects against sudden failure but lets fine dust pass through.
Magnefine Inline Filter Dual-stage magnet and paper element on the cooler line. Active protection that continuously scrubs the oil clean.
Fluid Longevity Keeps fluid cleaner, reducing operating temperatures. Extends the service life of expensive CVT fluid.

Frequently Asked Questions

Will installing an inline filter void my vehicle’s warranty?
No, under the Magnuson-Moss Warranty Act, a manufacturer cannot void your warranty for using aftermarket parts unless they can prove the part directly caused the failure.</p

How often should I replace the inline magnetic filter?
For best results, swap out the inline filter every 30,000 miles or whenever you perform a standard transmission fluid spill-and-fill.</p

Can I use standard fuel line hose for the installation?
No, you must use hose rated specifically for automatic transmission fluid and high operating temperatures to prevent hose rupture.

How do I know which line is the return line?
Briefly start the engine with both hoses disconnected and directed into a bucket; the hose that does not spray fluid is the return line.

Do I need to drop the transmission pan to install this?
No, this entire installation is performed in the engine bay or wheel well by accessing the external cooler lines.
