The quiet of a damp autumn morning is broken only by the low, mechanical hum of a hydraulic lift. In the driveway, the scent of fresh pine mulch and wet asphalt hangs heavy in the cool air. On paper, the modern compact pickup promises to bridge the gap between suburban chore-runner and weekend adventurer. But as the steel arm of the hoist lowers a heavy wooden pallet into the cargo bed, the comforting illusion of traditional truck capability begins to stretch thin.

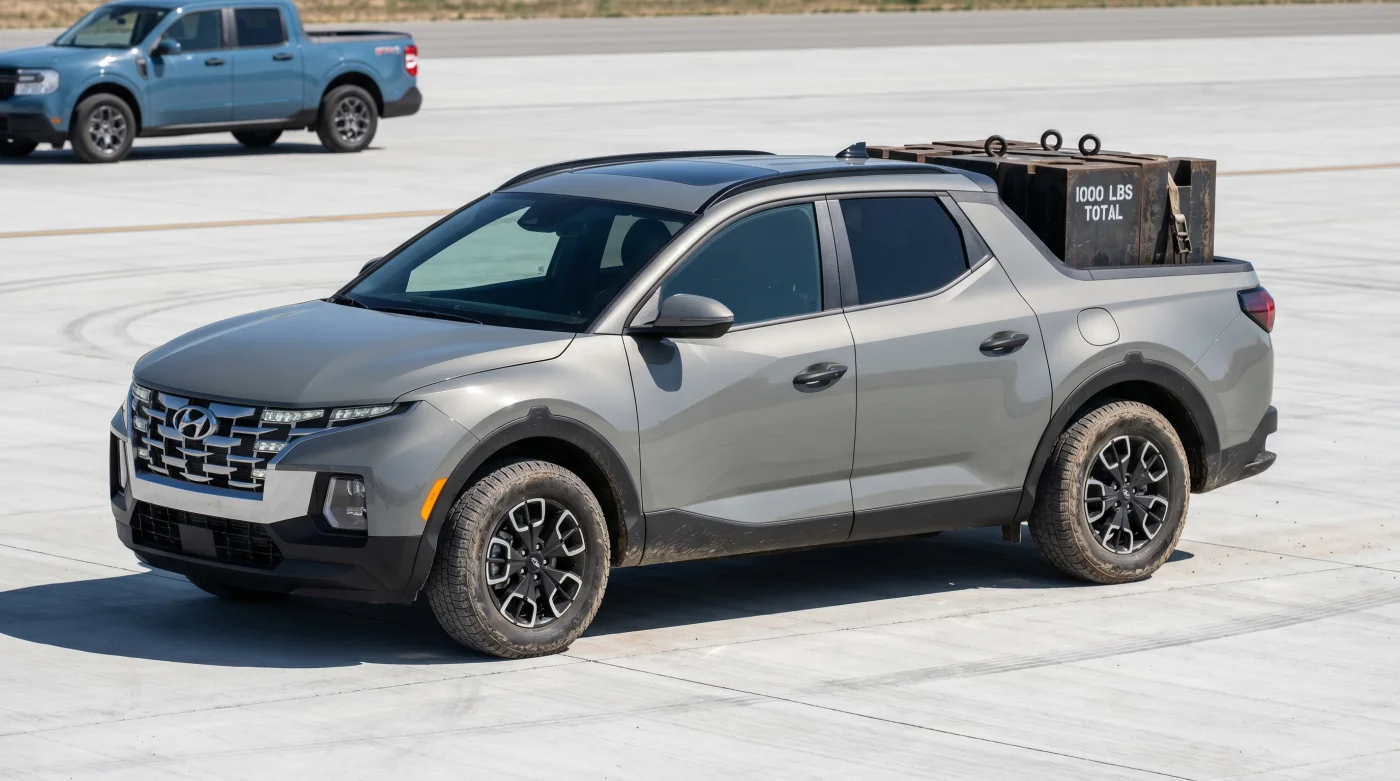

We are stacking raw cast-iron weights into the back of a pristine Hyundai Santa Cruz. The goal is to reach exactly 1,000 pounds of payload, positioned directly over the rear axle. It is a weight well within the vehicle’s official load capacity, yet the metal beneath the glossy paint behaves in a way that makes any seasoned mechanic uneasy. A soft, metallic groan escapes from the rear wheel wells as the coil springs compress under the burden.
At the exact moment the scale hits the half-ton mark, a distinct transformation occurs where the cab meets the composite cargo box. The straight, parallel line of the shut-line—the narrow gap separating the rear pillar from the bed side—begins to pinch at the top and yawn open at the bottom. Under this concentrated load, the sheet metal of the unibody structure flexes, creating a visible three-quarter-inch gap that signals an intense structural struggle occurring beneath the vehicle’s skin.
Nearby, a Ford Maverick stands waiting for the exact same test. When the same 1,000 pounds is lowered into its steel bed, the truck squats with a dull, firm thud. The gap between its cab and bed remains uniform, showing that its internal reinforcements are engineered to withstand bending forces with standard commercial posture. This stark difference reveals that not all unibody platforms are built with the same structural priorities.
The Origami Crane vs. the Shoe Box: Unibody Flex Explained
To understand why the Santa Cruz behaves this way, we must look at how modern vehicles distribute weight. Traditional trucks rely on a ladder frame, a heavy steel spine that supports the engine, cab, and bed independently. Unibody trucks, however, are more like structural origami. They gain their strength from the collective shape of their thin sheet metal panels welded together, distributing forces across the entire body shell rather than a central frame.
- Toyota Prius EGR valve cleaning completely prevents catastrophic hybrid head gasket failures
- Jeep Wrangler JL hinge corrosion destroys resale values when owners ignore a factory paint flaw
- Toyota Tundra 5.7L longevity demands an immediate cam tower seal replacement before 100k miles
- TrueCar pricing algorithms secretly direct buyers toward severely aged inventory sitting on dealership lots
- Mazda Miata NC used inspections demand a hidden water drain test buyers completely ignore
The Santa Cruz is built on a highly modified passenger crossover platform, designed to prioritize passenger comfort and sharp handling. When you place heavy cargo in its bed, the vehicle acts like a long metal beam supported at both ends by the wheels. Without a heavy-duty steel frame underneath, the center of this beam naturally bows downward. The visible gap separation at the bed corner is the physical manifestation of this bowing, showing that the rear section is pivoting slightly away from the passenger cabin under load.
The Engineer’s Diagnosis
Mark Vance, a 48-year-old structural fatigue analyst based in southeast Michigan, has spent his career studying how metal behaves under stress. Looking closely at the flexing joint of the Santa Cruz, Vance notes that the issue lies in the distribution of the rear suspension load paths. “The vehicle is incredibly quiet on the highway because its bushings and mounting points are isolated for comfort,” Vance explains. “But when you push the payload to half a ton, those soft rubber isolators compress fully, transferring the raw shear forces directly into the sheet metal of the rear pillar, causing it to deflect.”
Tailoring the Payload to Your Platform
For the Home Improvement Enthusiast
If your weekends involve hauling bags of concrete, damp topsoil, or heavy paving stones, the Maverick handles concentrated weight with greater composure. Its rear suspension towers are tied directly into a rigid crossmember that minimizes lateral and longitudinal deflection. You can load heavy materials right up to the cab wall without watching your body panels shift out of alignment.
For the Adventure Gear Hauler
The Santa Cruz shines when carrying bulkier, lighter items like mountain bikes, surfboards, or camping gear. Its sophisticated independent rear suspension offers a plush ride that keeps delicate gear from being rattled to pieces over gravel roads. However, if you must carry dense cargo, you must distribute the weight evenly across the entire bed floor rather than concentrating it behind the rear wheel arches.
Mindful Loading: A Practical Checklist
To protect your vehicle’s structure and maintain predictable handling when carrying heavy loads, a thoughtful approach to cargo distribution is necessary. Avoid simply throwing heavy items over the tailgate.
- Slide the heaviest items forward toward the cab to keep the center of gravity between the axles.
- Increase your rear tire pressure to the manufacturer’s recommended maximum load rating to prevent sidewall roll.
- Inspect the bed-to-cab alignment before and after loading to ensure the body panels return to their original resting state.
- Secure cargo with ratcheting straps to stop heavy weights from shifting suddenly during acceleration or braking.
The Structural Reality of the Modern Compact Truck
Recognizing the physical limits of your vehicle is not about finding fault, but about understanding the design trade-offs made by automotive engineers. The Santa Cruz offers a level of cabin quietness and highway refinement that rivals premium SUVs, a feat achieved by using compliant materials and flexible joint designs. The Maverick sacrifices some of that daily comfort for a stiffer, more traditional truck-like behavior under load.
By understanding how these platforms handle physical stress, you can make better decisions about how you pack, drive, and utilize your vehicle. Treating a light-duty unibody truck with the respect its engineering demands ensures it will perform reliably for years to come, keeping you safe and comfortable on every drive.
“True structural integrity isn’t just about resisting weight; it is about how gracefully a vehicle manages the energy of that weight when the road gets rough.” — Mark Vance, Structural Analyst
| Key Point | Physical Detail | Added Value for the Reader |
|---|---|---|
| Payload Flex Location | Gap separation where the cab meets the rear composite bed panel. | Helps owners identify visual signs of structural strain before permanent damage occurs. |
| Suspension Design | Santa Cruz uses comfort-focused bushings; Maverick uses stiffer, commercial-grade mountings. | Explains why one truck rides better while the other hauls heavy loads more securely. |
| Weight Management | 1,000-pound threshold causes visible deflection in the lifestyle platform. | Informs buyers on which vehicle fits their specific hauling and towing requirements. |
Is the structural flex in the Hyundai Santa Cruz dangerous?
While the visible gap deflection looks concerning, it is a characteristic of the vehicle’s flexible body mounts and is unlikely to cause immediate failure if kept within official weight limits. However, repeated overloading can lead to fatigue over time.
Does the Ford Maverick experience similar body flex?
No, the Maverick features a stiffer rear structure and different suspension mounting points, allowing it to maintain its body alignment even when loaded near its maximum capacity.
How can I reduce body flex when hauling heavy items?
Always place the heaviest portion of your cargo as far forward in the bed as possible, distributing the weight across both axles rather than concentrating it behind the wheels.
Does this flex affect the vehicle’s long-term resale value?
Frequent heavy hauling that causes extreme flexing can lead to paint chipping along the seams, panel misalignment, and potential squeaks, which may lower the vehicle’s appeal on the used market.
Can aftermarket helper springs or air bags fix this issue?
While helper springs can reduce rear suspension sag, they do not change the structural design of the unibody panels, meaning some sheet metal deflection may still occur under heavy loads.
