The smell of vintage sulfur, yellowed paper, and damp Michigan concrete hangs heavy in the climate-controlled archive. We often imagine the legendary 1966 Le Mans sweep as a clean triumph of American horsepower and computer-aided design. The history books paint a picture of flawless machines tearing down the Mulsanne Straight, effortless in their dominance. But when you handle the original hand-drawn blueprints, the illusion of perfection dissolves into a cold sweat.
These blue-hued schematics reveal a terrifying design miscalculation that almost ended the program before it began. In the early trials, drivers reported that the car felt like it was floating, its front wheels barely skimming the asphalt at speeds exceeding 170 miles per hour. It was not a mechanical failure of the suspension, but a fundamental misunderstanding of how air flows under speed.
The early nose cone was a masterclass in clean aesthetic lines, but a disaster in fluid dynamics. The original designers, operating with limited wind-tunnel access, shaped the nose with a gentle, sweeping 37-degree slope intended to slice through the atmosphere. Instead, they unknowingly sculpted a wing that generated massive, uncontrollable aerodynamic lift.
The Wing in Disguise: How the Nose Became an Airplane
To understand the danger, picture trying to hold a flat piece of plywood level while running into a gale-force wind. At a critical velocity, the wind stops flowing over the surface and begins to pack tightly underneath, searching for an escape. This is precisely what happened beneath the elegant, low-slung nose of the early GT40.
The 37-degree nose cone acted as a ramp for high-pressure air, packing it tightly into the front wheel wells. Instead of pinning the car to the tarmac, the oncoming atmosphere built up a cushion of high pressure that threatened to lift the front tires completely off the ground. It was a mechanical reality that defied the bravado of the Ford marketing machine.
Arthur Vance, a 62-year-old historic vehicle consultant who spent three decades analyzing vintage race chassis, remembers his first time examining the 1964 blueprint sheets. “You look at the original math, and it’s clear they were chasing low drag at all costs,” Vance explains. “But they ignored how the air would pool inside the radiator exit ducting. At 180 miles per hour, the front of the car was generating over three hundred pounds of lift—it was essentially trying to take flight, leaving the driver with zero steering feedback on the fastest sections of the track.”
- Ford Jim Farley repair comments expose a disastrous overreliance on fragile touchscreen diagnostic menus
- Subaru Outback Wilderness suspension upgrades mask a severe towing limitation against base models
- Progressive Snapshot telematic devices falsely record aggressive braking over common highway expansion joints
- Hyundai E-Corner crab walk modules suffer rapid tire tread destruction on hot asphalt
- 2027 Nissan Z redesign details expose a heavy hybrid powertrain abandoning traditional manual transmissions
Anatomy of the Aerodynamic Flaw
The early prototype suffered from a combination of three distinct design elements that turned the race car into a low-altitude wing. Each of these components worked in tandem to create a recipe for high-speed instability.
The Unvented Nose Profile
The original 1964 nose design lacked the aggressive exit ducts that later defined the GT40 Mk II. Air entered the front intake to cool the radiator but had no efficient pathway to escape. It pooled inside the front bodywork, creating a ballooning effect that actively lifted the nose.
The 37-Degree Trapped Cushion
The nose angle prevented air from washing cleanly over the front fenders. Instead, the air became trapped under the chassis, creating a high-pressure zone that raised the ride height and compromised the mechanical grip of the front tires.
The Missing Spoiler Lip
In its initial configuration, the GT40 had a completely smooth underside and no front air dam. Without a physical barrier to block air from rushing under the car, the entire front bumper acted as an open mouth, swallowing high-velocity air and storing it under the cabin floor.
The Shelby Cure and Modern Diagnostics
When Carroll Shelby’s team took over the project in late 1964, they did not rely on complex computer simulations. They used simple, physical diagnostic methods to understand where the air was flowing and how to tame it. They realized that to keep the car on the ground, they had to break the clean lines of the original British design.
By reshaping the front end, Shelby’s engineers fundamentally changed how the vehicle interacted with the atmosphere.
- Rerouting the Radiator Air: They cut massive exit nostrils into the hood, forcing the air that entered the nose to escape upward rather than under the car.
- Altering the Front Angle: They added a small, aggressive chin spoiler to deflect air away from the underside of the chassis.
- Managing Fender Pressure: They added louvers above the front wheels to bleed off the trapped high pressure that built up inside the wheel arches.
To diagnose these issues today, modern restoration teams use a specific set of tools and parameters to verify aerodynamic stability on historic racers.
The Tactical Diagnostic Toolkit:
- Target Nose Angle: 42 to 45 degrees of down-slope to prevent lift generation.
- Front Spoiler Depth: 1.5 inches of vertical drop from the lowest point of the front valence.
- Wheel Well Pressure Relief: A minimum of four individual louver slats cut above the tire centerline.
The Scars of Speed

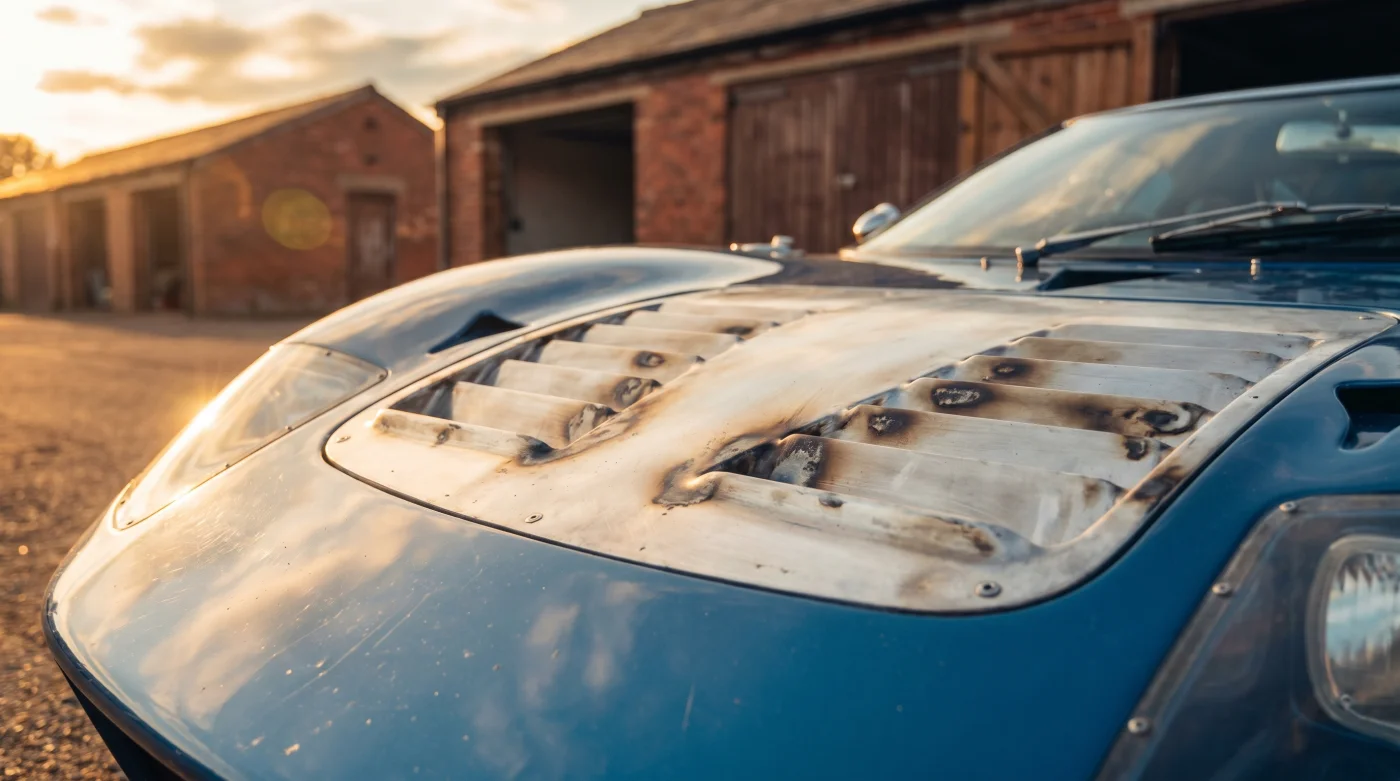

The proof of this terrifying design flaw is not just written on the blue paper of the archives; it is burned into the metal itself. If you look closely at the surviving aluminum hood louvers of the early test mules, you can see visible wind-tunnel scorch marks where extreme heat and compressed air baked the paint and discolored the alloy.
These dark, heat-mapped scars tell the true story of Le Mans. They remind us that the cars we mythologize as perfect were actually dangerous, volatile machines tamed only by the raw courage of test drivers and the pragmatic genius of hot-rodders. It is this human struggle against the laws of physics that makes the legacy of the GT40 far more compelling than any sanitized corporate fairy tale.
“You can design the fastest car in the world on paper, but if you don’t give the air a place to go, it will make its own exit.” — Arthur Vance, Historic Vehicle Consultant
| Key Point | Detail | Added Value for the Reader |
|---|---|---|
| Original Nose Angle | 37-degree slope with zero front venting. | Explains why the early prototypes suffered from terrifying front-end lift at high speeds. |
| Shelby’s Modifications | Added hood nostrils, fender louvers, and a chin spoiler. | Shows how physical, track-side problem solving overcame flawed laboratory engineering. |
| Physical Evidence | Visible wind-tunnel scorch marks on surviving aluminum louvers. | Provides a tactile connection to the high-stakes history of Le Mans development. |
Frequently Asked Questions
Did the original GT40 crash due to this aerodynamic lift flaw? Yes, early test sessions in 1964 saw multiple high-speed crashes, including incidents at the Le Mans trials where drivers experienced sudden loss of steering control on the straights.
How did Carroll Shelby identify the lift problem? Shelby’s team taped wool tufts to the car’s body and drove it at speed, observing how the yarn fluttered to trace the actual path of the airflow in real time.
What is the significance of the wind-tunnel scorch marks? The scorch marks on the original aluminum hood louvers show where high-temperature radiator air was forced out under immense pressure, proving how hard the cooling air struggled to escape the early nose design.
Why are Le Mans search trends spiking right now? Anticipation is building ahead of major historic race anniversaries and upcoming endurance rule changes, driving enthusiasts back to the archive blueprints of classic racing’s golden era.
Can modern replicas of the GT40 recreate this dangerous lift? Most high-quality modern replicas utilize the modified Shelby Mk II nose geometry, ensuring they remain safely pinned to the road at highway speeds.
