The scent hits you first—not the clean, mineral aroma of a new garage, but a faint, acrid tang of toasted polymer and warm copper. In the quiet hours of 3:00 AM, your household is asleep, yet your garage is home to a silent, high-amperage struggle. The modern charging cord hangs from the wall, its thick cable pulsing with electricity as it feeds the vehicle’s massive floorboard battery. Everything seems peaceful from the outside, but underneath the futuristic sheet metal, a physical vulnerability is brewing.
Standard automotive reviews often focus on rapid charging rates and digital screens, but they work with pristine test cars and rarely monitor the physical port under prolonged load. When an electric vehicle is plugged in night after night for tens of thousands of miles, the charging port itself becomes a high-stress bottleneck. The connection that seemed so effortless during the initial showroom walkthrough begins to show the physical strain of daily survival.

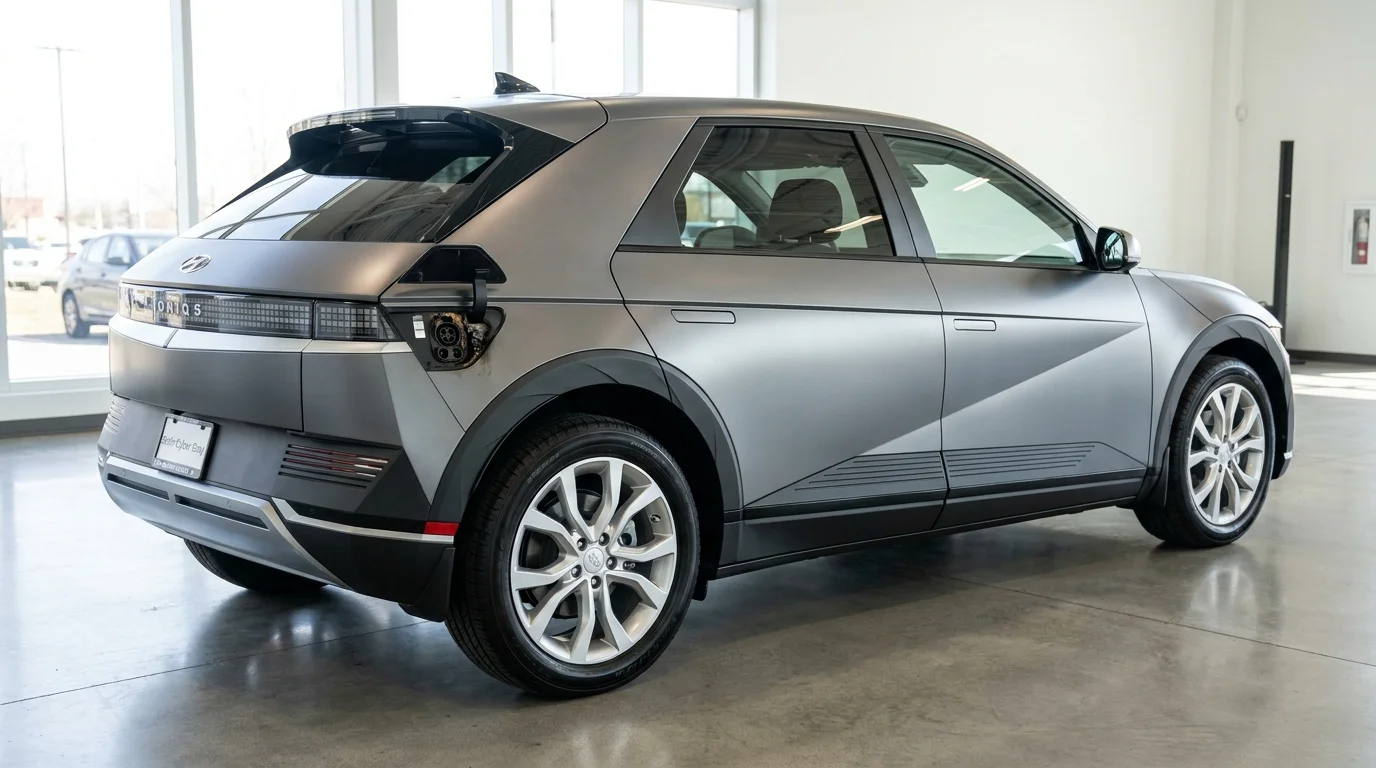

This is the reality discovered during a grueling 40,000-mile endurance test of the popular Hyundai Ioniq 5. While the vehicle excels in modern driving dynamics, its everyday alternating current charging setup harbors a design flaw that can trigger practical dread in any owner. Over time, the humble act of plugging in at home can degrade the very infrastructure required to keep the machine moving.
The Slow Burn of Electrical Resistance
To understand what occurs inside the charging port, imagine trying to force a rushing river through a narrow plastic pipe. During high-amperage Level 2 charging, up to 48 amps of current must flow continuously through small alternating current pins inside the vehicle’s inlet. If the physical contact between the charger’s plug and the car’s receptacle is even slightly imperfect, microscopic gaps allow oxygen and moisture to work their mischief.
This creates microscopic oxidation, which acts as a physical dam to the incoming current, known to engineers as electrical resistance buildup. As resistance climbs, the electricity cannot flow smoothly, and the laws of physics dictate that this trapped energy must escape as heat. This heat does not dissipate easily; it builds up quietly inside the sealed plastic assembly, slowly baking the internal wiring from the inside out.
- 2026 Rivian R2 highway testing exposes aggressive regenerative braking calibration limitations
- Ram 1500 Hurricane engine swap requires a massive firewall structural redesign
- Ford EcoBoost oil catch cans prevent catastrophic carbon buildup on intake valves
- Subaru WRX aftermarket cold air intakes secretly destroy engine compression and resale value
- Toyota 4Runner 200k-mile longevity requires a strict hydraulic suspension flushing protocol
Marcus Vance, a 48-year-old power grid inspector and long-term owner from Ohio, was the first in his local owners’ group to document this silent failure. After noticing his charging sessions abruptly pausing or dropping in speed, Marcus used a thermal imaging camera to inspect the connection point. What he discovered was alarming: temperatures at the charge port pins were climbing past 220 degrees Fahrenheit, far exceeding the safety thresholds of the surrounding components.
Deciphering the Thermal Limits of Your EV
Not all charging habits place the same physical demands on your vehicle’s hardware. The severity of thermal degradation depends heavily on how much energy you attempt to pull through the physical port over extended periods.
For the standard home commuter charging at 32 amps, the system operates well within its thermal safe zone, keeping temperatures manageable. However, for those utilizing high-output 48-amp home chargers to minimize charging times, the physical interface is pushed to its absolute limits, leaving zero room for environmental wear. This high-power delivery accelerates the degradation of the copper contacts, creating a cycle where heat breeds more resistance, which in turn breeds even more heat.
A Practical Regimen for Port Longevity
Protecting your vehicle from this structural degradation requires a mindful approach to daily home charging. Instead of relying blindly on automatic settings, taking active control of your charging parameters can save your vehicle’s port from premature failure.
By implementing a few simple physical adjustments, you can significantly reduce the thermal load on your connection points:
- Reduce the charging current within the vehicle’s infotainment screen from maximum to minimum or medium.
- Keep the physical charging plug supported so its heavy cord does not pull downward, which deforms the internal pins.
- Periodically inspect the pins for dark discoloration or signs of pitting.
- Use a non-conductive electronic contact cleaner to remove microscopic debris and oxidation from the terminals.
The Port Preservation Toolkit:
- Maximum Recommended Amp Draw: 32 Amps to 40 Amps
- Critical Temperature Threshold: 115 degrees Fahrenheit
- Maintenance Frequency: Inspect and clean terminals every six months
Looking Beyond the Digital Interface
The physical world has a way of asserting itself, no matter how advanced our software displays become. When we look past the slick touchscreens, we find that the foundational laws of electrical engineering still apply. Over time, the high-mileage reality of EV living exposes how vulnerable these interfaces are to simple, physical wear.
When this thermal cycle runs its course unchecked, the physical structure of the vehicle finally surrenders to the heat, the plastic softening like warm candle wax. The ultimate result of this unchecked resistance is a distorted, melted plastic housing around the charge port terminals, a sobering reminder that even the most advanced vehicles still rely on the integrity of simple metal contacts.
Heat is the silent enemy of electrical longevity; once the physical copper contacts lose their structural tension, thermal failure is no longer a possibility—it is a mathematical certainty.
| Charging Amperage | Thermal Risk Level | Actionable Prevention Strategy |
|---|---|---|
| 32 Amps | Low to Moderate | Clean pins semi-annually; ensure plug is fully seated. |
| 40 Amps | Moderate to High | Support the heavy cord to relieve physical pin strain. |
| 48 Amps | Severe Risk | Reduce the vehicle’s internal charging limit to lower current draw. |
Frequently Asked Questions
Can I spot this thermal damage before it melts the port? Yes, look for sudden drops in home charging speed or a hot, sweet plastic smell near the rear fender after charging.
Why does this issue escape standard automotive reviews? Most reviews only test vehicles for a single week, failing to accumulate the hundreds of heat cycles required to build up destructive resistance.
Does physical strain on the charger cable affect port temperature? Yes, a heavy, hanging cable pulls on the plug, creating micro-gaps between the pins that accelerate electrical resistance.
Can cleaning the port prevent this issue? Regular cleaning with electrical contact cleaner removes microscopic corrosion, maintaining a tight, low-resistance path for the current.
Is this charging port issue covered under warranty? Most manufacturers cover charging port failures under the bumper-to-bumper or EV components warranty, but preventive care avoids the hassle of dealership delays.
