The late afternoon sun catches the fine dust motes dancing in your Toyota Prius as you pull into the driveway. It is a quiet car, almost ghost-like in its movements, but if you listen closely to the rear passenger seat, there is a frantic, high-pitched whirring that shouldn’t be there. That sound is a tiny fan spinning at ten thousand revolutions per minute, trying desperately to pull air through a passage that is currently clogged with lint, pet hair, and the invisible debris of a hundred grocery trips. You might not notice it today, or even next week, but this microscopic blockage is the primary reason most hybrid batteries fail just as they hit that 100,000-mile milestone.
Most owners treat the high-voltage battery as a mysterious black box, a chemical ticking time bomb that will eventually require a five-thousand-dollar heart transplant at the dealership. They wait for the dreaded ‘Red Triangle of Death’ to appear on the dashboard, assuming it is simply the natural aging of the cells. The reality, however, is much more mechanical and far more preventable. Your battery isn’t dying because it is old; it is suffocating under its own heat because a five-cent piece of plastic mesh is dirty.
Think of your hybrid system as a high-performance athlete trying to run a marathon while breathing through a pillow. The nickel-metal hydride cells under your rear seat generate immense heat every time you step on the brake or accelerate from a stop. To keep these cells within a safe operating temperature, the car pulls cool, conditioned air from the cabin through a dedicated intake vent. When this vent or its internal filter becomes clogged, the airflow drops to a trickle, the internal temperatures skyrocket, and the car’s computer begins ‘thermal throttling’—reducing your fuel economy and slowly cooking the battery from the inside out.
The Battery Cooling Myth vs. Mechanical Reality
The central metaphor of hybrid maintenance is often misplaced. We focus on oil changes and tire rotations because they are visible and traditional, but we ignore the thermal health of the electrical heart. Dealerships rarely mention the cooling fan filter during routine service calls. Why would they? A fan cleaning is a ten-minute job that costs nothing in parts, while a battery replacement is a high-margin repair that keeps the service bays full. To truly own your vehicle’s longevity, you must shift your perspective from being a passive operator to being the system’s primary caretaker.
- Corvette C8 dual clutch filter neglect silently destroys transmission components and plummets resale value
- Ford F-150 EcoBoost 200k-mile longevity requires replacing cam phasers before the factory schedule
- AAA car buying service algorithms mask a direct data pipeline to high-pressure sales floors
- Ford F-150 EcoBoost buyers must inspect cam phasers for a specific cold start rattle
- Lexus GX550 dealership markups hide an artificial scarcity tactic buyers can easily bypass
I remember talking to Marcus, a veteran fleet mechanic in Phoenix who manages a pack of nearly a hundred high-mileage hybrids for a local courier service. Marcus noticed a pattern: cars that carried dogs or operated in dusty suburban environments were losing their battery packs at half the age of the ‘clean’ cars. He didn’t buy new batteries; he bought a shop vac and a set of plastic trim tools. By cleaning the intake filters every 20,000 miles, he pushed his fleet average to over 250,000 miles on the original factory cells. It was a shared secret among the pros that the average commuter was never supposed to find out.
Segmenting the Risk: Who Is Your Prius Fighting?
Not every driver faces the same level of internal debris, but three specific profiles are at high risk for premature battery failure. First is ‘The Pet Owner.’ If you share your car with a shedding companion, those fine hairs are bypass magnets. They don’t just sit on the mesh; they weave themselves into the blades of the fan, creating a weighted imbalance that further reduces cooling efficiency. Second is ‘The Family Hauler.’ Rear-seat passengers, especially children, tend to kick up carpet fibers and lint that gravitate directly toward the intake vent located near the floorboards.
Then there is ‘The Coastal or Desert Driver.’ Fine silt and salt-laden humidity can create a sticky residue on the filter screen. Over time, this residue captures ordinary dust and turns it into a literal wall of gray felt. If you fall into any of these categories, your battery is likely running ten to fifteen degrees hotter than the engineers intended. In the world of high-voltage electronics, every ten-degree increase in operating temperature effectively halves the remaining life of the component. By clearing this path, you are quite literally doubling your battery’s chance of reaching the quarter-million-mile mark.
The Five-Minute Rescue Mission: A Step-by-Step Guide
You do not need a degree in electrical engineering or a chest full of expensive tools to perform this fix. On most Gen 3 and Gen 4 models (2010–2022), the air intake is located on the side of the rear seat bolster, typically on the passenger side. You will see a small plastic grill that looks like a speaker cover. This is the gateway to your battery’s survival. Start by ensuring the car is powered off and the interior is cool. You are looking for a small plastic clip or a single Phillips-head screw hidden under a plastic cap.
- Locate the intake grill on the lower part of the rear seat or the side bolster near the door.
- Gently pop the plastic cover using a flat tool or your fingernails; it should release with a satisfying click.

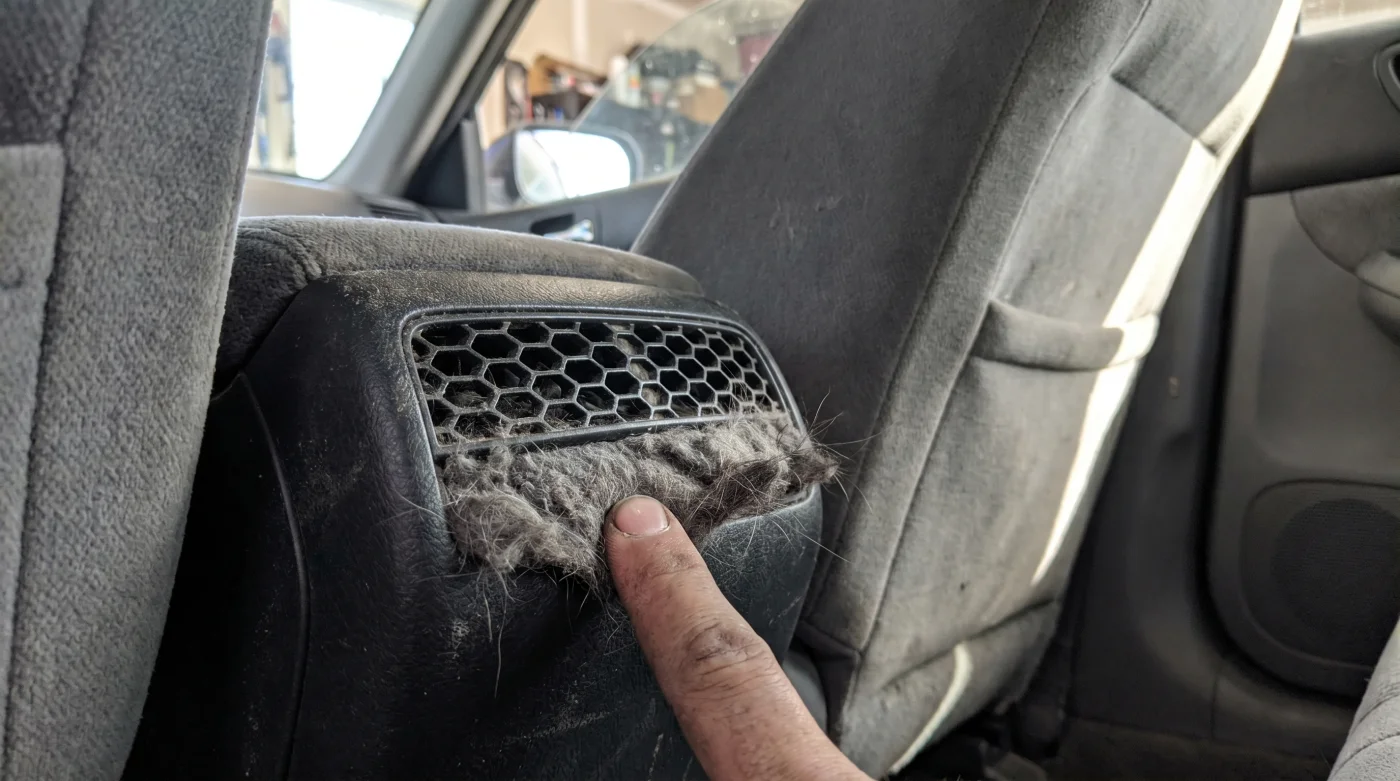

- Observe the mesh screen behind it. If you see a gray, fuzzy coating, you have found the culprit.
- Use a vacuum with a brush attachment to gently pull the debris away. Never blow compressed air into the vent while it is assembled, as this just pushes the dust deeper into the battery housing.
- For a deep clean, remove the filter entirely and wash it with mild soap and water, ensuring it is bone-dry before re-installation.
While you have the cover off, take a flashlight and look at the ‘squirrel cage’ fan deeper inside the duct. If the blades look furry, it may be worth using a long-handled brush to dislodge the heaviest buildup. This simple act of mindfulness ensures that the air reaching your battery is at the highest possible volume and the lowest possible temperature. It is the most effective ‘free’ performance upgrade you will ever give your vehicle.
The Bigger Picture: Stewardship and Financial Peace
Mastering the cooling fan filter is about more than just avoiding a repair bill. It is about a change in how we relate to the technology we rely on. We live in an era of disposable goods, where we are encouraged to trade in a vehicle as soon as a dashboard light flickers. By taking control of this specific detail, you are opting out of the cycle of planned obsolescence. You are proving that a well-maintained machine can defy the standard expectations of the market.
When you hear that fan kick on during a hot summer day, you will no longer feel a pang of anxiety about the health of your cells. Instead, you will know that the air is flowing freely, the chemicals are stable, and your bank account is protected. This is the essence of the empathetic expert: knowing that the smallest, most mundane actions—like vacuuming a piece of plastic—can have the most profound impact on your quality of life and your financial freedom. You aren’t just cleaning a car; you are preserving a tool that grants you independence.
The most expensive car repair is the one that could have been prevented with a simple vacuum and five minutes of your time.
| Maintenance Point | Required Action | Value to the Owner |
|---|---|---|
| Intake Mesh Screen | Vacuum every 10k miles | Prevents 90% of thermal-related cell failures. |
| Cooling Fan Blades | Deep clean every 50k miles | Restores factory airflow levels and reduces cabin noise. |
| Rear Seat Area | Keep clear of blankets/bags | Ensures the intake is never physically obstructed during travel. |
What if my hybrid battery fan is already loud?
A loud fan is a distress signal; it means the car is struggling to cool down. Clean the filter immediately to see if the noise subsides before seeking a professional diagnosis.Does the dealership clean this during a standard oil change?
Almost never. Unless you specifically request a ‘hybrid system health check,’ this filter is usually ignored until it triggers a fault code.Can I replace the filter with a high-flow aftermarket version?
The OEM mesh is designed for a specific balance of filtration and flow. It is better to keep the factory filter clean than to risk letting larger debris hit the battery cells.Will cleaning the filter fix a ‘Check Hybrid System’ light?
Sometimes. If the light was triggered by a temporary over-temperature event, cleaning the filter and clearing the code may resolve the issue, though the battery should be tested for permanent damage.How do I know if my model has this filter?
Most Prius models from 2010 onward have a visible intake. Some earlier models require removing the rear seat trim to access the fan, which is more involved but equally vital.
