Original Ford Pinto fuel tank geometry reveals a lethal placement flaw engineers ignored

The morning sun in 1971 had a way of making the Candyapple Red paint on a fresh Ford Pinto look like a promise kept. You might remember the sound of the door—a thin, metallic click that lacked the heavy thud of a Galaxie but felt honest for a car weighing just over 2,000 pounds. It was the era of the subcompact, a response to a shifting world where fuel prices began to bite and the driveway needed something nimble. You sat low, your knees slightly elevated, breathing in that specific scent of new vinyl and unyielding plastic, unaware that the geometry behind your head was a ticking clock.

Standard expectations for a budget commuter usually involve a few squeaks or a heater that takes its time. You expect the trade-off for a low sticker price to be thinner carpet or a lack of power steering. However, the professional reality lurking beneath the rear floor pan was far more sinister than simple cost-cutting. While the exterior suggested a breezy, carefree drive to the office, the blueprint was a kinetic trap that turned even a moderate rear-end bump into a chemical nightmare. It wasn’t just a small car; it was a masterclass in how institutional silence can override physical laws.

The Ford Pinto was designed under a relentless clock, aiming to bring a ‘2,000-pound car for under $2,000’ to market in record time. This haste birthed a specific mechanical arrangement that treated the fuel tank not as a protected vessel, but as a structural filler. In the quiet of a modern garage, looking at those original schematics, you can see where the lines of safety were traded for the lines of profit. The car didn’t just fail; it was engineered with a hollow heart that left the most volatile component of the machine completely exposed to the whims of traffic.

The Paperweight Geometry and the Differential Spike

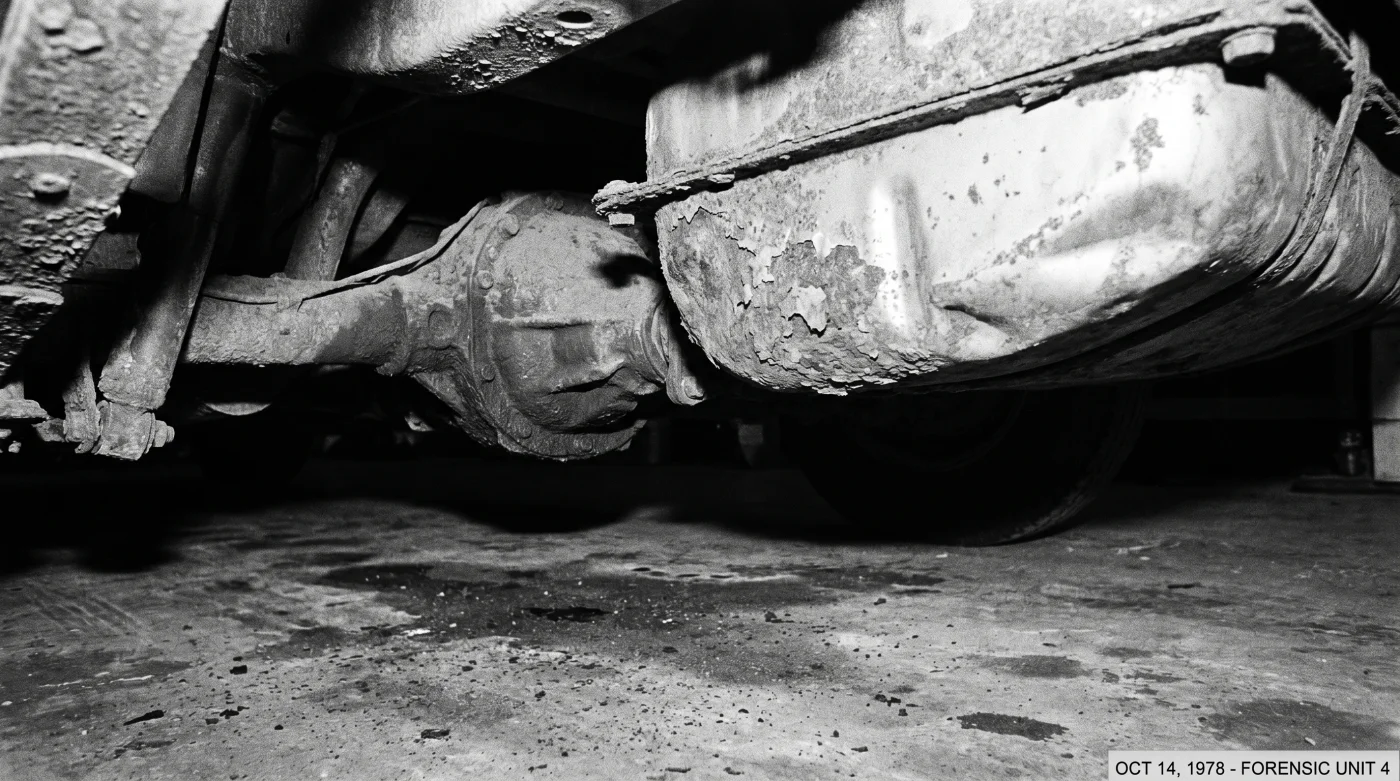

Imagine a hammer hovering inches away from a lightbulb. In the Pinto’s design, the fuel tank was the lightbulb, and the rear differential—the heavy metal housing for the rear gears—was the hammer. Most cars of the era utilized a substantial rear bumper and a dedicated crumple zone to absorb energy during a collision. But the Pinto’s architecture was stripped of these vital buffers. The fuel tank was tucked into a narrow space between the rear bumper and the axle, leaving no room for metal to fold safely without puncturing the fuel cell.

This wasn’t an accidental oversight; it was a geometric inevitability. Because the bumper was largely cosmetic and lacked a reinforced subframe, any impact exceeding 20 miles per hour would crush the rear of the car like a soda can. As the metal buckled, the fuel tank was shoved forward with immense force. It didn’t just hit a flat surface; it was driven directly into the protruding bolts of the differential housing. This created a guaranteed rupture in the tank, spraying pressurized gasoline into the passenger cabin at the exact moment the metal sparked from the impact.

Arthur ‘Artie’ Henderson, a 78-year-old retired assembly inspector who spent thirty years in Dearborn, still remembers the hushed tones in the breakroom when the early crash test data started leaking. ‘We knew the tank was thin,’ he told me while wiping grease from a vintage wrench, ‘but the real secret was the lack of the cross-member. We were essentially building a car where the gas tank acted as the bumper. It was a shared secret among the line workers that we wouldn’t let our own kids drive those hatchbacks.’ This sentiment highlights a chilling gap between the corporate ‘cost-per-life’ calculations and the humans actually turning the bolts.

Segmenting the Risk: From Commuter to Collector

For the ‘Daily Driver’ of the 70s, the Pinto represented freedom and frugality. It was the car for the college student or the young family trying to outpace inflation. These drivers relied on the brand’s reputation, assuming that a major manufacturer would never compromise on the integrity of the fuel system. They operated under the ‘standard’ logic that a car is a protective shell, never suspecting that the shell itself was designed to collapse into the fuel supply.

For the ‘Modern Collector’ or ‘Vintage Enthusiast,’ the Pinto is now a curiosity—a piece of dark history on wheels. If you find yourself looking at one of these at a local car show, the beauty of the restored chrome shouldn’t distract you from the absence of a safety bladder. Collectors today often perform ‘stealth’ modifications, such as installing fuel cells or reinforcing the rear frame, to bridge the gap between 1970s negligence and modern safety expectations. They see the car for what it is: a beautiful design with a compromised soul.

The Tactical Inspection: A Mindful Safety Check

If you are considering purchasing or restoring a vintage subcompact from this era, you must approach the undercarriage with a skeptical eye. Use a bright LED shop light and a small mirror to inspect the ‘triangle of danger’ between the rear axle and the bumper. Look for the following specific structural red flags that indicate a lack of protective geometry:

• Check the distance between the fuel tank and the rear differential; if there is less than 6 inches of clearance without a steel shield, the design is high-risk.
• Examine the bumper mounting points; if they are bolted directly to the thin sheet metal of the trunk pan rather than a heavy frame rail, there is zero energy absorption.
• Look for ‘puncture points’ such as exposed carriage bolts or sharp corners on the axle housing that face the fuel tank.
• Inspect the fuel filler neck for a ‘breakaway’ design; original Pintos often had rigid necks that would pull out of the tank during a collision, causing massive leaks.

A tactical toolkit for any vintage car owner should include a high-quality fire extinguisher rated for chemical fires and a modern fuel-tank liner. These steps aren’t just about maintenance; they are about correcting a historical wrong. Taking the time to understand the physical vulnerabilities of your vehicle allows you to drive with a sense of informed caution rather than blind luck.

The Bigger Picture: Physics Over Profit

The legacy of the Ford Pinto serves as a permanent reminder that the physics of the road do not care about a quarterly earnings report. When we look back at the lethal placement of that fuel tank, we aren’t just looking at a mechanical error; we are looking at a failure of corporate empathy. Mastering the details of how our vehicles are built—and where the shortcuts were taken—gives us the power to demand better from the machines we trust with our lives.

Understanding this history changes the way you look at every car on the road today. It reminds us that safety is never a ‘given’; it is a series of deliberate choices made by engineers who must weigh the cost of a steel plate against the value of a human breath. When you recognize the fragility of the original design, you gain a deeper appreciation for the rigorous standards of the modern era, ensuring that the mistakes of the past remain firmly in the rearview mirror.

‘Safety is not a feature you add to a car; it is the physical manifestation of how much a company values its customers.’

Is it safe to drive an original Ford Pinto today? Only if it has been retrofitted with a modern fuel cell or a steel shielding plate between the tank and the differential. What exactly caused the fires? In a rear-end collision, the tank was pushed into the differential bolts, which punctured the metal and sprayed fuel. Why didn’t Ford fix it immediately? Internal memos suggested it was cheaper to pay out potential settlements than to recall and fix every car for $11 each. Are there other cars with this flaw? Several subcompacts from the early 70s had similar rear-tank placements, but the Pinto lacked the structural reinforcement found in rivals. How can I tell if my vintage car is safe? Check for a dedicated rear subframe and ensuring the fuel tank is mounted ‘above’ or ‘forward’ of the rear axle.
