The Silent F-150 Lightning Flaw The Rivian R1T Avoids Entirely

You slide on a mechanic’s creeper beneath the chassis, the cold concrete pressing against your back. The faint scent of metallic dust and old motor oil lingers in the garage, a phantom smell considering you are inspecting a fully electric machine.

Above your head rests thousands of pounds of American engineering. If you grew up around pickups, you carry an inherent trust in that heavy steel ladder frame. It feels like absolute permanence, a structural promise forged over a century of combustion-engine dominance.

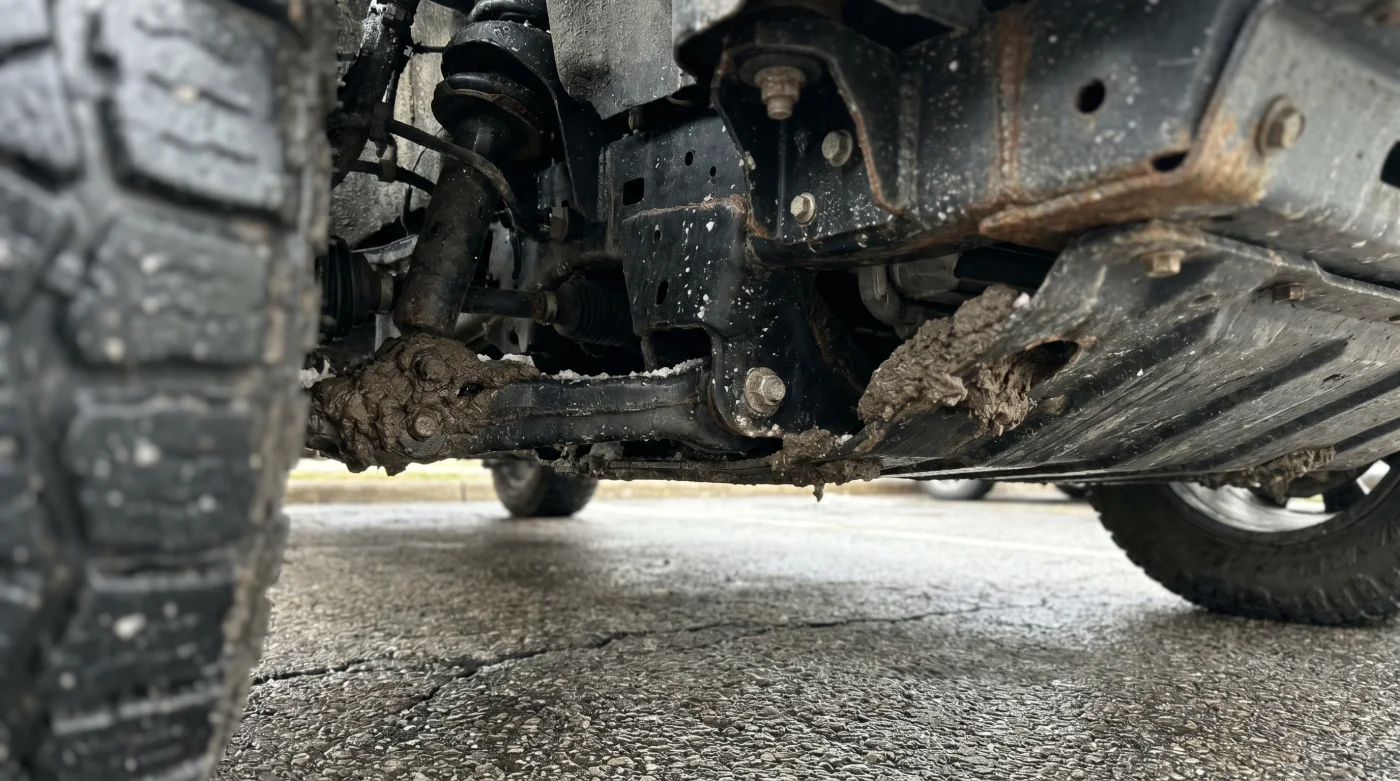

But as your flashlight beam sweeps across the underbelly, the shadows tell a different story. The massive battery pack, the beating heart of this electric workhorse, does not sit flush within a protected fortress. Instead, it hangs slightly below the frame rails, a vulnerable belly exposed to the harsh realities of the road.

We are taught to assume that legacy automakers inherently build better, tougher trucks because they always have. Yet, when you transition from explosive fuel to delicate lithium-ion cells, that old blueprint becomes a handicap, leaving a silent vulnerability that a newer, unburdened competitor managed to erase entirely.

The Ladder Frame Illusion

Think of a traditional truck frame like a vintage bookshelf. It was designed to hold a very specific set of encyclopedias—an engine up front, a transmission in the middle, and a drive shaft running to the rear. When you suddenly need that same shelf to hold a massive, flat aquarium, the fit is going to be incredibly awkward.

Ford’s strategy with the F-150 Lightning was brilliant in its speed to market: use the existing, beloved F-150 architecture and swap the guts. But this creates a spatial compromise. The battery pack is essentially bolted beneath the floorboards, protruding just enough to catch the brunt of a stray highway retread or a jagged trail rock.

Rivian, free from a century of combustion heritage, built the R1T as a skateboard. The battery is not an afterthought strapped to the bottom of a truck; the battery is the structural floor of the truck. The protective casing integrates seamlessly from edge to edge without hanging below heavy steel rails.

This shift in perspective alters everything. What seemed like a lack of pedigree—Rivian’s status as an automotive newborn—is actually its greatest shield. They did not have to force new technology into an antique skeleton.

Marcus, a 48-year-old off-road recovery specialist out of Moab, Utah, sees this architectural difference firsthand. He spends his weekends winching high-centered vehicles off unforgiving sandstone ledges. Last spring, he pulled a stranded Lightning off a relatively mild trail. ‘The truck has all the power in the world,’ Marcus noted, wiping red dust from his winch cable, ‘but that battery casing catches on the breakover angle. It is like trying to hike over boulders while carrying a briefcase between your knees.’ He points out that the R1T, with its perfectly flat, reinforced underbelly, glides over the same ledges like a skipping stone on a calm lake.

Assessing Your Daily Hazards

Not every driver is crawling over Utah sandstone, but the architecture of your electric truck dictates how you should navigate your specific environment. Understanding these physical boundaries keeps a minor scrape from becoming a catastrophic battery breach.

For the Highway Commuter

If your truck rarely leaves the pavement, your primary enemies are kicked-up road debris and shredded semi-truck tires. The Lightning’s slight underbelly protrusion creates a lip where debris can strike at a blunt angle. You need to remain hyper-vigilant scanning far ahead on the interstate, actively steering clear of roadkill or blown tires that a gas-powered truck could easily straddle.

For the Jobsite Foreman

Construction sites are littered with hidden hazards—rebar, discarded lumber, and deep ruts carved by heavy machinery. Here, the traditional suspension droop of a loaded truck lowers that vulnerable battery even further toward the mud. You have to read the terrain not just for traction, but for clearance, mentally mapping the lowest hanging fruit beneath your floorboards.

For the Weekend Overlander

Taking the family into the backcountry requires a fundamental shift in how you pick your line. You can no longer rely on the familiar scraping sound of a steel crossmember as a harmless warning. With a retrofitted EV frame, a scrape is not just cosmetic; it is a direct assault on the vehicle’s propulsion system.

Protecting the Electric Underbelly

You cannot change the skeletal structure of your vehicle, but you can alter your relationship with it. It requires a deliberate, mindful approach to driving and maintenance.

Start by getting intimately familiar with the lowest points of your chassis. Use a measuring tape on a flat driveway to find your true ground clearance, paying special attention to the center of the wheelbase where breakover angles are most critical.

• The 10-Degree Rule: When approaching a steep driveway or trail obstacle, take it at a slight angle rather than head-on to artificially increase your breakover clearance.
• Tire Pressure Diligence: Maintain cold tire pressure exactly to the door placard, often around 42 PSI for heavy EVs. Under-inflated tires drop your ride height by crucial fractions of an inch.
• Visual Sweeps: Once a month, grab a flashlight and inspect the composite skid plates shielding the battery. Look for deep gouges or missing retaining clips.
• Suspension Awareness: Remember that adding 1,000 pounds of payload to the bed compresses the rear suspension, angling the belly of the truck closer to the asphalt.

These small habits shift your mindset. You stop driving a generic pickup and start piloting a highly advanced, heavy-duty electrical grid.

Beyond the Badge on the Grille

We often buy vehicles based on the stories we tell ourselves. The blue oval represents a century of blue-collar reliability, while a new startup feels like an unproven gamble. But physics and geometry do not care about brand loyalty.

Recognizing the difference between a retrofitted legacy frame and a purpose-built EV architecture allows you to make peace with the machine in your driveway. It strips away the marketing noise, leaving you with a clear, mechanical reality.

When you understand exactly where your vehicle is vulnerable, that vulnerability ceases to be a source of anxiety. It simply becomes a parameter you operate within. Whether you are navigating a bustling lumber yard or a quiet forest service road, knowing the shape of your foundation is the truest form of control.

The battery pack should never be a passenger in a vehicle’s chassis; it must be the foundation upon which the entire structure is born.

Are EV batteries easily damaged by road debris? EV batteries are housed in thick composite or metal casings, but direct strikes from heavy debris can dent the casing, potentially compromising the internal cooling channels.

Can I add aftermarket skid plates to a Lightning? Yes, several companies manufacture heavy-duty steel or aluminum plates, though they will add weight and slightly reduce your overall range.

Does the R1T have a higher ground clearance? The R1T utilizes adjustable air suspension that can raise the vehicle significantly higher than standard fixed-coil trucks, pulling the battery far away from ground hazards.

Is a ladder frame still better for towing? Traditional ladder frames are excellent for handling heavy towing stresses, which is why legacy trucks excel at trailer sway control, even if battery placement is compromised.

How often should I check my truck’s underbody? A quick visual inspection with a flashlight once a month, or immediately after hearing an underbody scrape, is the best practice for early damage detection.
