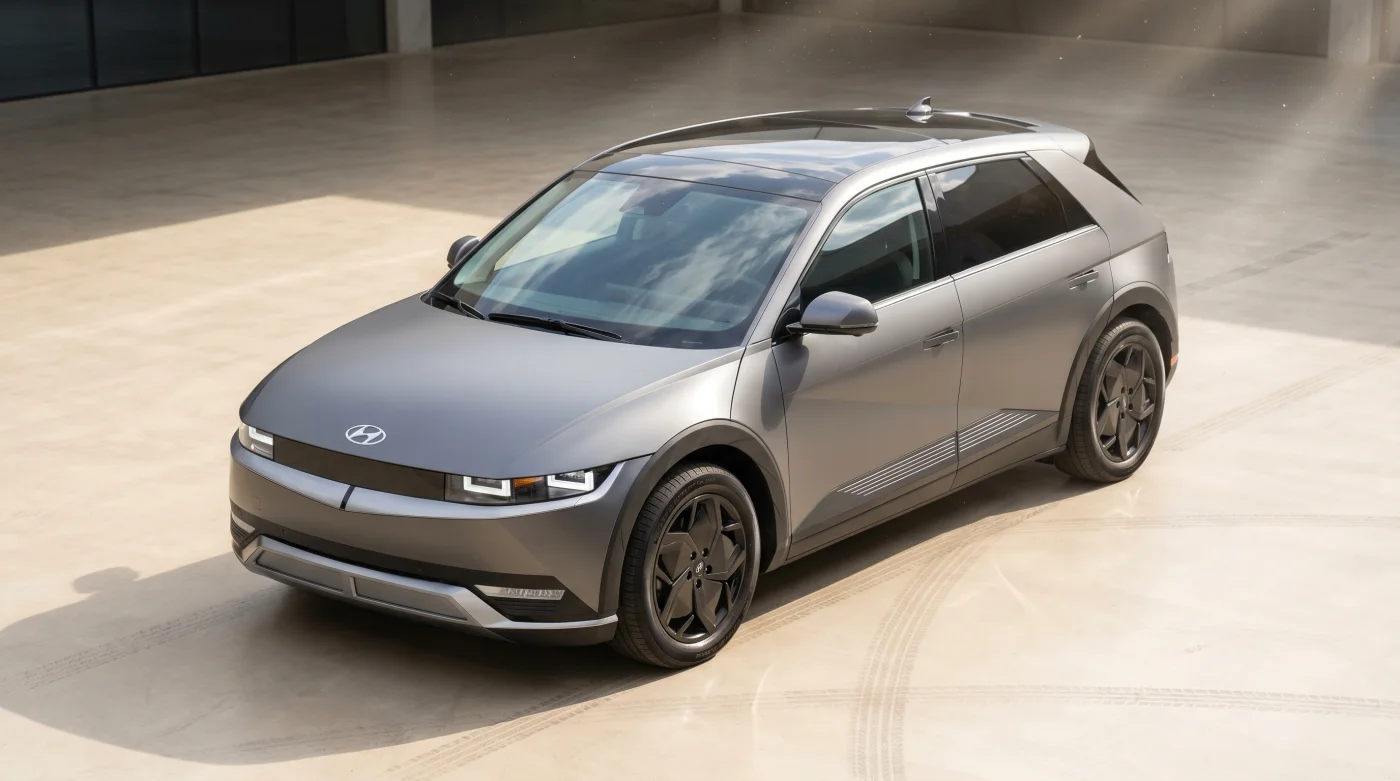

The quiet hum of a Level 2 home charger in a cool suburban garage usually signals peace of mind. You plug in the pixelated snout of your Hyundai Ioniq 5, expecting the usual steady flow of electrons. Outside, the morning air smells of damp pine and wet pavement, a calm start to a routine commute. But beneath that futuristic, retro-modern sheet metal, a silent drama is unfolding at the molecular level.
For many owners who crossed the 35,000-mile threshold, this quiet ritual lately ends in an unexpected silence. Instead of the satisfying clunk of the high-voltage contactor engaging, there is only a dead, unresponsive dashboard. The heavy lithium pack beneath your feet remains perfectly healthy, yet the car refuses to wake up, paralyzed by a design choice hidden deep within its silver aluminum ribcage.
Standard EV wisdom tells you to watch the traction battery health, keeping track of state-of-charge cycles like a hawk. But the real weak link in modern high-voltage platforms is not the massive floor-mounted battery pack; it is the support system designed to manage it. When the 12-volt battery dies repeatedly, it is not a sign of a cheap lead-acid cell, but rather a cry for help from a hard-working component buried beneath the rear seats.
The Hidden Heart: Understanding the ICCU System
Think of the Integrated Charging Control Unit (ICCU) as the vehicle’s central nervous system breathing through a pillow. It is a dual-purpose heart, directing high-voltage current to the traction battery while simultaneously sipping power to keep the low-voltage 12-volt accessories alive. When this unit struggles to dissipate its own heat, it begins a slow, silent retreat, rationing power until it eventually starves the very system that wakes the car. This is not a simple fuse issue; it is a thermal bottleneck where delicate silicon chips must constantly endure rapid thermal cycles.
Marcus Vance, a 44-year-old EV diagnostics specialist based in Seattle, spends his days hooked up to high-voltage telemetry. He was among the first to notice a pattern in early-production Ioniq 5 models arriving at his shop on flatbeds. “People assume their main battery is degrading when they see charging speeds drop,” Marcus explains, pointing to a dissected, liquid-cooled aluminum housing on his workbench. “But the real culprit is a subtle, thermal stress fracture on the ICCU board’s liquid coolant path, which slowly starves the low-voltage converter of cooling right around the 35,000-mile mark.”
- 2026 Honda Passport suspension testing exposes a harsh ride penalty ruining daily commuting comfort
- 2025 Toyota Camry exterior panels hide a massive aerodynamic shift altering highway wind noise
- Ford EcoBoost engines demand a specific catch can installation stopping catastrophic turbo valve failure
- Ceramic coatings applied over uncorrected clear coats permanently destroy modern luxury car resale values
- Honda CR-V maintenance schedules omit a critical differential fluid interval essential for 200k miles
The Thermal Profiles of Daily Driving
The Level 2 Home Charger Profile
If you primarily charge at home using a high-amperage 48-amp wall box, your ICCU experiences long, steady thermal soaking. The continuous heat build-up during these overnight sessions degrades the solder joints faster than quick, high-impact DC fast-charging sessions. Dropping your home charger’s current slightly can dramatically extend the operational life of these internal circuits.
The High-Voltage Road Tripper
Drivers who rely heavily on 350kW DC fast chargers expose the ICCU to brief but intense thermal spikes. While the coolant pump runs at maximum velocity during these sessions, the rapid transition from blistering heat to highway-speed cooling causes micro-expansion in the hardware casing.
The 35,000-Mile Preventative Action Plan
Protecting your vehicle’s power systems requires a shift from passive ownership to mindful observation. You do not need a degree in electrical engineering to spot the warning signs of a struggling control unit before it leaves you stranded in a grocery store parking lot.
- Monitor the charge port temperature using the vehicle’s onboard utility screen or an OBD2 dongle to check for sudden charging speed throttling.
- Listen for the coolant pump running loudly or continuously for more than ten minutes after you turn off the vehicle on a mild day.
- Check the 12-volt battery voltage weekly using a simple cigarette-lighter voltmeter; a reading below 12.2 volts while parked is a primary warning sign.
- Reduce your home charging current in the vehicle’s infotainment settings from 100% to 90% or 80% to reduce the thermal load during overnight sessions.
Tactical Toolkit: Keep an OBD2 scanner handy to track coolant temperatures (ideal operating zone is under 122°F), set your daily charging limits to 80% for local driving, and invest in a high-quality 12-volt battery monitor to catch drops early.
Redefining Our Relationship with Electric Wear
In the rush toward electrification, we have been conditioned to worry about the wrong things. We fret over battery degradation percentages and cold-weather range loss, ignoring the complex solid-state plumbing that makes modern transportation possible.
Recognizing that your car is a living system of thermal balances brings a sense of grounded control back to the driver’s seat. Taking care of the quiet components tucked away under the chassis ensures that your transition to the future remains smooth, predictable, and remarkably silent.
“True vehicle longevity in the electric age isn’t measured by battery chemistry alone, but by how gently we treat the silent converters that keep the system breathing.” — Marcus Vance, EV Diagnostics Specialist
| Key Point | Detail | Added Value for the Reader |
|---|---|---|
| Thermal Throttling Signs | Charging speeds drop from 11kW to 6kW during home sessions. | Helps you identify early ICCU degradation before a total electrical breakdown occurs. |
| 12V Battery Symptoms | Frequent deep discharges, dashboard warnings, or keyless entry failures. | Prevents getting stranded by showing when the ICCU has stopped keeping the auxiliary battery healthy. |
| Home Amperage Tuning | Lowering wall box current from 48A to 32A or 40A. | Reduces continuous heat build-up by up to 25%, preserving fragile solder joints over time. |
Frequently Asked Questions
What is the primary cause of ICCU failure in the Hyundai Ioniq 5? The main cause is thermal stress and potential liquid coolant leaks within the unit’s housing, which damages the internal circuits that charge the 12-volt system.
At what mileage do these ICCU symptoms typically begin to appear? Most owners and technicians report early warning signs, like throttled charging speeds, starting around 35,000 miles, with complete failures occurring closer to 40,000 miles.
Will a simple 12-volt battery replacement fix the underlying issue? No, replacing the 12V battery only temporarily solves the symptom; if the ICCU is degraded, it will fail to charge the new battery, leading to another failure within days.
Can I adjust my driving habits to protect the internal charging hardware? Yes, reducing home charging amperage settings and avoiding back-to-back DC fast charging sessions during extreme summer heat can significantly lower thermal stress.
Does Hyundai cover the ICCU replacement under the factory warranty? Yes, the ICCU is typically covered under the 10-year/100,000-mile powertrain and EV system warranty, but identifying signs early avoids sudden towing situations.
