The garage floor is cold, smelling of concrete sealer and the faint petroleum scent of fresh factory undercoating. You slide under the front bumper of a bone-stock Ford Bronco, leaving the bright showroom lights behind. Above you, past the plastic air dam that most owners toss into the recycling bin within twenty-four hours, lies the raw mechanical spine of the vehicle. There are no fancy badges down here, just the quiet honesty of industrial engineering.

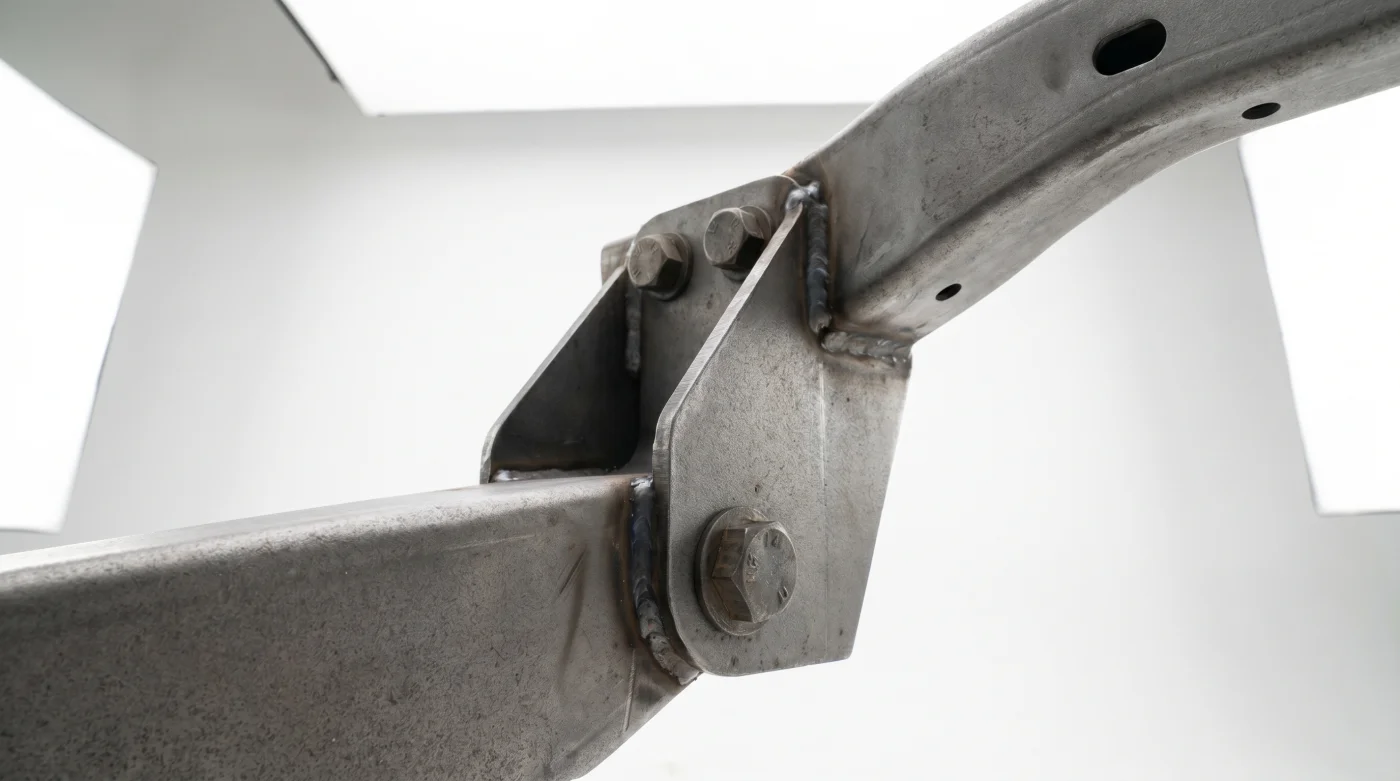

Your fingers brush against a massive piece of metal that feels out of place on a standard commuter trim. This is the heavy-duty, unpainted steel lower control arm bracket bolted directly to the front frame rail. It is thick, unapologetically industrial, and wears none of the black powder-coated dress wear found on more expensive packages. It is cold to the touch, rough-edged, and remarkably over-engineered for a base-model vehicle.
The dealership showroom floor is built on a simple psychological premise: you must pay for capability upfront. The sales agent points to the Sasquatch package, with its high-clearance fender flares and 35-inch mud tires, insisting that it is the only path to true wilderness exploration. They ask for an extra ten thousand dollars, framing it as a bargain for factory-engineered peace of mind. They suggest that without it, your vehicle is merely a commuter disguised as an adventurer.
But looking at this bare metal bracket reveals a different story altogether. The physical architecture of the base model contains the exact same structural mounting points as its high-end siblings. This means the foundation for a world-class overland build is already resting in your driveway, completely unburdened by overpriced factory components you would eventually discard anyway as your build evolves.
The Illusion of the Factory Upgrade
The factory chassis is like a professional-grade kitchen. The Sasquatch package is simply a pre-packaged set of consumer knives. If you plan to cook at a Michelin-star level, you do not need the manufacturer’s bundled cutlery; you need the commercial stove. Standard dealer wisdom treats vehicle trims like distinct ladders of quality. In reality, the modern assembly line demands standardization to keep production costs manageable.
Because Ford standardized the frame-side geometry, the base suspension possesses massive potential for aftermarket geometry correction. When you lift a vehicle, the angle of the control arms changes, which can ruin road manners and steering feedback. However, because this specific chassis-side bracket is recessed high up into the frame rail, it naturally allows for longer-travel suspension kits to operate within their optimal kinetic sweep without binding.
- Subaru Forester moonroof recalls secretly trigger massive comprehensive insurance premium auto-renew hikes
- Kawasaki hydrogen combustion motorcycle prototypes expose a massive fuel storage thermal expansion flaw
- 2027 Dodge Durango pricing structures mask a controversial downgrade to mild hybrid platforms
- EV charging station thermal cables completely fail after extreme summer cooling pump degradation
- Tesla Model Y autopilot software aggressively brakes when reading specific aftermarket LED taillights
The Shared Secret of the T6 Platform
Marcus Vance, a 47-year-old chassis development specialist based out of Dearborn, Michigan, spent nearly a decade refining body-on-frame platforms before entering the private aftermarket sector. “When we looked at the T6.2 frame geometry,” Vance recalls, “we realized Ford did something highly unusual. They did not weaken the base frame mounting points to save pennies. Every single base model rolls off the line with the exact same high-clearance stamped-steel chassis-side mounting brackets as the Raptor, albeit with different mounting sleeves. They built a modular tank and sold half of them as grocery getters.”
Tailoring the Foundation: Overland Build Paths
By choosing the base model, you escape the financial trap of paying twice for the same components. If you buy a Sasquatch only to replace its shock absorbers and wheels with custom overland gear, you have essentially thrown thousands of dollars into a recycling bin. The secondary market has cooled, and base models are readily available, making them the perfect starting canvas.
For the Weight-Conscious Explorer
For those who prioritize carrying capacity over rock crawling, keeping the base trim’s lighter weight is a major advantage. Without the heavy factory beadlock-capable wheels and heavy-duty iron differentials, the base model boasts a healthier payload margin. This allows you to mount a rooftop tent, a drawer system, and a fridge without instantly exceeding the gross vehicle weight rating.
A simple suspension change using high-quality internal bypass shocks creates a supple, high-speed touring setup that handles corrugated dirt roads with absolute grace. Because the unpainted steel frame bracket accepts standard polyurethane or Johnny Joint bushings, you can install heavy-duty aftermarket lower control arms that shrug off trail impacts while keeping your steering geometry perfectly straight.
For the Technical Trail Rider
If your style of overlanding involves navigating deep washouts and high-mountain passes, you need maximum wheel articulation. The high-clearance factory bracket geometry accommodates aftermarket upper and lower control arms designed with offset angles. These parts allow the front suspension to droop significantly further than stock configurations without binding the ball joints.
These offset arms allow for increased downward wheel travel without rubbing against the frame rails or over-extending the steering linkages. By pairing these with a quality 2.5-inch diameter coilover system, you create a vehicle that can crawl over boulders with the stability of a dedicated trail rig, all while utilizing the stock frame pickup points.
Mindful Execution: A Minimalist Installation Guide
Working on your own suspension is a form of mechanical meditation. It requires clean surfaces, patience, and an understanding of how force transfers through steel. By taking your time, you ensure that every component is aligned to work with the chassis, rather than fighting against it.
Before loosening a single bolt, ensure the vehicle is safely supported by heavy-duty jack stands under the frame, allowing the front suspension to droop completely. This relieves the tension on the front stabilizer bar and makes working around the control arm brackets much safer. Follow these steps for a clean installation:
- Loosen the lower control arm pivot bolts while the vehicle is on the ground to prevent bushing bind.
- Clean the unpainted surface of the factory frame-side bracket with a wire brush and apply a thin coat of rust-preventative paint to preserve the raw steel.
- Insert the new high-clearance aftermarket control arms, ensuring the grease zerk fittings face downward for easy maintenance.
- Torque all suspension hardware to factory specifications only when the vehicle is resting on its own weight on a level surface.
The Tactical Toolkit
To perform this suspension transformation correctly, keep these tools and specifications ready at your workbench:
- 18mm and 21mm deep sockets with a break-over bar.
- Heavy-duty ball joint separator tool.
- High-grade marine anti-seize compound for the pivot bolts.
- Calibrated click-type torque wrench capable of reaching 150 lb-ft.
- Chassis-black protective enamel paint for bare steel preservation.
The Bigger Picture: Building Capability Over Buying Status
There is a quiet satisfaction in knowing the exact anatomy of your vehicle. When you are eighty miles deep into a dirt track, far beyond the reach of cell service, a shiny dealership badge will not save you from a mechanical failure. Knowing how to diagnose and repair your own suspension is the ultimate trail insurance policy.
True self-reliance comes from understanding how your vehicle’s suspension reacts to the terrain. By bypassing the dealership markup and building your own suspension system from a base platform, you gain an intimate knowledge of every bolt, bushing, and bracket beneath your feet. You do not just drive a machine; you partner with it.
“Real trail capability is built with grease, steel, and specific geometry, not with monthly financing options.” — Marcus Vance, Chassis Engineer
| Key Point | Detail | Added Value for the Reader |
|---|---|---|
| Frame-Side Brackets | Heavy-duty, unpainted steel construction standard across all trims | Eliminates the need for expensive frame modification or welding during lift kit installation. |
| Weight Advantage | Base trim lacks heavy factory add-ons, leaving more payload capacity | Allows for heavier overland gear like drawers, tents, and fridges without sagging. |
| Geometry Alignment | Recessed bracket design maintains safe steering angles under load | Prevents premature wear on CV axles and ball joints, saving thousands in trail repairs. |
Frequently Asked Questions
Does installing aftermarket suspension on a base trim void the factory warranty?
Only on the modified suspension parts themselves. The rest of the vehicle’s powertrain and structural warranty remains intact under federal law.Why did Ford leave the lower control arm bracket unpainted on base trims?
To simplify manufacturing. Because it is hidden by the plastic air dam on base models, leaving it unpainted saved processing steps without affecting structural strength.Can I run 35-inch tires on a base Bronco without a Sasquatch package?
Yes. With a modest 2-inch aftermarket suspension lift and the removal of the crash bars, 35-inch tires will clear the wheel wells perfectly.Do I need to upgrade the steering rack when lifting a base model?
For general overlanding and moderate trail driving, the factory rack is highly capable. Heavy rock crawling may warrant a reinforced sleeve kit.What is the maximum lift height possible using the factory frame brackets?
You can safely go up to 3 inches of lift before needing aftermarket upper control arms to correct the ball joint angles.
