Ford F-150 frame rust inspections require checking this exact spot behind the rear axle

The early morning sun hits a freshly waxed tailgate, casting a reflection so sharp it could cut paper. You stand in a gravel driveway somewhere in the Midwest, looking at a pre-owned Ford F-150 that looks like it just rolled off the assembly line in Dearborn. The seller mentions how he washed it every Sunday, and the lack of bubbles on the wheel arches seems to prove his devotion. There is a specific, metallic scent to a clean truck—a mix of tire shine and cold aluminum—that lulls you into a sense of security.

But as you crouch down, the ground feels damp against your knees, and the air beneath the chassis is heavy with the smell of wet iron and old road salt. You click on a high-lumen flashlight, its beam cutting through the shadows under the bed. While most buyers are busy running their hands over the leather seats or checking the infotainment screen, the real story of this truck is being written in the dark corners where the light rarely reaches. A pristine body often masks a structural skeleton that is quietly returning to the earth.

The standard inspection routine usually involves a quick glance at the rockers and a kick to the tires. However, the F-150 uses a fully boxed frame, a design choice that provides immense towing strength but creates a hidden cavern for moisture. Inside these steel boxes, road brine and fine silt settle into a slurry that never truly dries, eating away at the metal from the inside out while the exterior paint remains flawless. Structural rot is a silent passenger that most owners don’t realize they are carrying until it’s too late.

The Boxed Frame Illusion

To understand why these trucks fail, you have to stop thinking of the frame as a solid beam and start seeing it as a straw. When you drive through a puddle or a salted highway, the frame ‘inhales’ debris through various access holes. Because the F-150 is the high-volume king of the American road, these frames are engineered for mass production, featuring specific drainage points that are meant to let water out. The central irony is that these drainage holes often become clogs, trapping the very elements they were designed to shed.

Think of it like breathing through a pillow; the airflow is there, but it’s strained and carries a heavy cost. When the internal cavity of the frame stays wet for weeks at a time, the protective coating begins to flake off in large, brittle scales. You might see a frame that looks black and sturdy from three feet away, but a firm press with a screwdriver would reveal metal as soft as wet cardboard. The strength is an optical illusion maintained by a thin layer of factory wax.

Mike Henderson, a 54-year-old heavy equipment mechanic from Ohio, has seen this play out hundreds of times. He once told me about a customer who brought in a ‘mint’ 2013 Platinum trim for a simple shock replacement. When Mike went to set the lift arms, he heard the sickening crunch of a frame rail collapsing. The truck looked like a showroom piece, but the rear section had the structural integrity of a soda can. The secret is knowing where to poke before you sign the title.

The ‘Death Spot’ Behind the Rear Axle

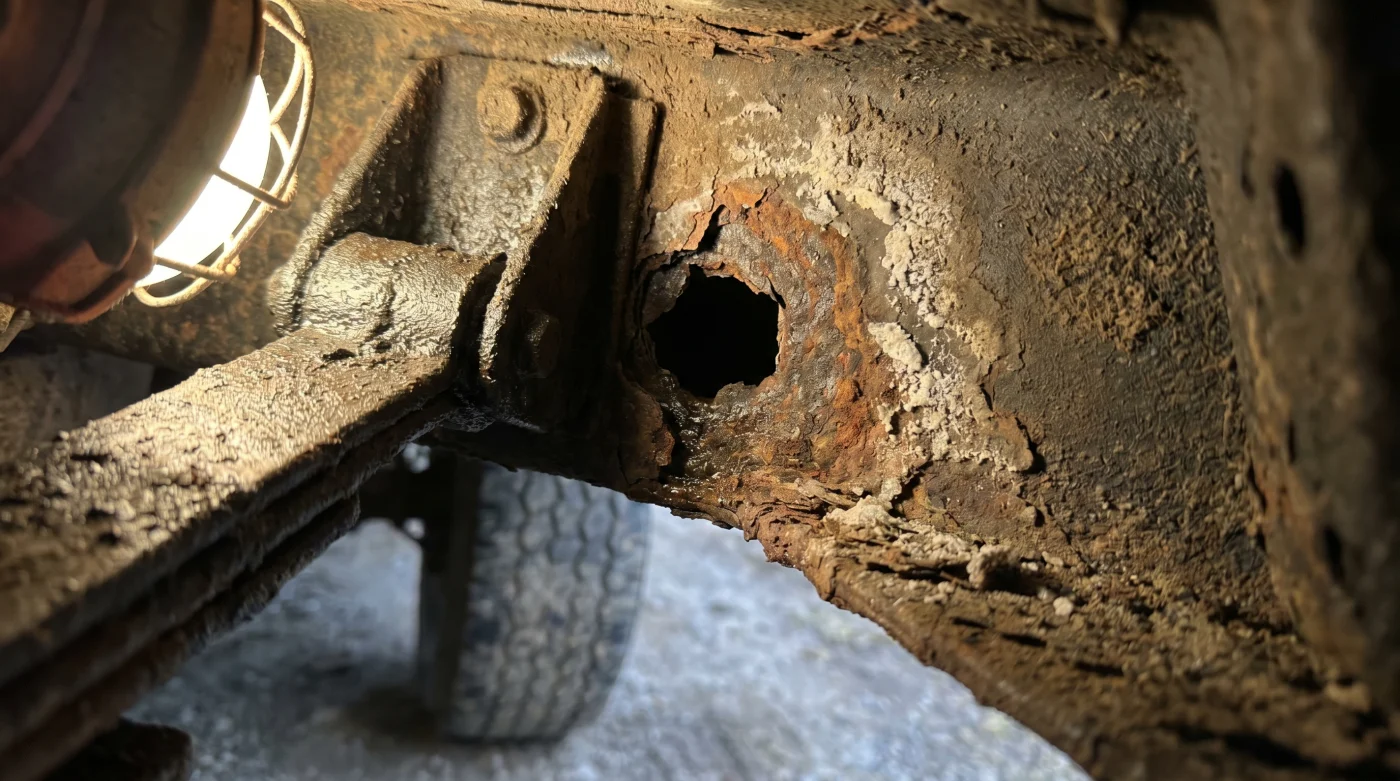

If you only have sixty seconds to inspect an F-150, ignore the engine bay and head straight for the driver-side rear wheel well. Reach past the tire and find the leaf spring hanger—the heavy bracket that connects the suspension to the frame. Just behind this hanger, there is a specific boxed section where the frame transitions. This is the low point of the rear assembly, a natural basin where physics dictates that moisture accumulates and stays until it causes a catastrophe.

For the purist buyer who wants a truck to last twenty years, this spot is the ultimate truth-teller. If you find caked mud or a thick layer of grit sitting inside this rail, it’s a red flag. For the busy parent just looking for a reliable commuter, a quick tap with a small ball-peen hammer in this area will tell you everything. A healthy frame rings with a sharp, metallic ‘ping,’ while a rotted frame offers a dull, thudding sound that suggests the metal has turned to flakes.

• Locate the rear leaf spring hanger bracket on the driver’s side.
• Insert a finger (carefully) into the drainage hole located 2-3 inches behind the bracket.
• Feel for ‘scales’ or loose metal sheets sitting at the bottom of the internal rail.
• Check the ‘kick-up’ section where the frame arches over the axle for vertical cracks.
• Use a flashlight to look for ‘blooming’ rust where the tow hitch mounts to the frame.

A Tactical Inspection Toolkit

You don’t need a lift to perform a professional-grade inspection, but you do need to be willing to get dirty. A pair of mechanics’ gloves and a bright LED light are your primary tools. When you reach that critical spot behind the rear axle, don’t just look—feel. Use a small flathead screwdriver to probe the corners of the frame rails. If the metal flakes off in chunks larger than a thumbnail, the structural integrity is already compromised beyond simple repair.

Pay close attention to the area around the fuel tank straps as well. This region is often shielded from the car wash spray, allowing salt to sit undisturbed for years. It is a slow-motion chemical reaction that doesn’t care about your service records. A truly clean truck will have frame rails that feel smooth to the touch, with the factory e-coat still firmly bonded to the steel, rather than the rough, sandpaper texture of advancing oxidation.

Finally, look at the spare tire winch assembly. If the secondary safety cable is rusted through, it’s a strong indicator that the rest of the rear frame has been neglected. These small details act as a litmus test for the truck’s entire history. A seller can hide a transmission slip with a fresh fluid change, but they cannot hide a decade of frame neglect without expensive and obvious patch work that any discerning eye can catch.

The Peace of Structural Certainty

There is a unique peace of mind that comes from knowing the bones of your vehicle are solid. In an era where a used F-150 can cost as much as a small starter home, the stakes of a bad purchase are higher than ever. By focusing your attention on the ‘death spot’ behind the rear axle, you are looking past the marketing and the aesthetic appeal to the very heart of the machine’s longevity. You aren’t just buying a truck; you are buying the confidence that it won’t fail you when the bed is loaded with mulch or the trailer is hitched for a summer trip.

Ultimately, a truck is a tool, and a tool is only as good as its foundation. Stepping back from a potential purchase because you found a handful of rust flakes in a drainage hole isn’t being picky—it’s being a steward of your own safety. When you finally find that one F-150 with a frame that rings true and feels solid, you’ll know the search was worth the effort. You’ll drive away not just with a new set of keys, but with the quiet satisfaction of a professional who knew exactly where to look.

“A shiny bumper can be bought for three hundred dollars, but a solid frame is earned through years of diligent washing and a little bit of luck with the elements.”

Is a little surface rust on an F-150 frame normal?
Yes, light orange dusting on the surface is common and usually harmless, but thick, bubbling flakes indicate deep structural damage.

Can a rotted F-150 frame be safely repaired?
While patches can be welded, a frame rotted from the inside out usually requires a full replacement to restore original safety ratings.

Does the 2015+ aluminum body mean the frame won’t rust?
No, while the body panels won’t rust, the frame remains high-strength steel and is still susceptible to the same corrosion issues.

How often should I wash the undercarriage to prevent this?
In salt-heavy states, a thorough underbody flush should be performed weekly during winter, focusing specifically on the rear wheel wells.

Are there aftermarket coatings that actually work?
Oil-based undercoatings (like Fluid Film or Woolwax) are highly effective because they creep into the boxed sections and displace moisture.
