The damp, cold air of an October morning clings to the windshield as you twist the key. Your F-150’s 3.5-liter EcoBoost engine fires up, its initial high idle settling into a familiar, low hum. But as you pull onto the highway ramp and press the throttle, the expected surge of twin-turbo power never arrives. Instead, a sickening orange wrench icon illuminates the dashboard, accompanied by a sudden, limp-mode hesitation that makes the truck feel like it is breathing through a wet pillow.
In the quiet of your garage later that evening, the anxiety sets in. You plug in a basic OBD-II scanner, and the screen flashes a chilling code: P0299, Turbocharger Underboost. A quick search online or a brief chat with the service writer at the local dealership yields a grim prognosis: your turbos are tired, the wastegates are worn, and you need a complete replacement. The estimate sits on the counter, a cold sheet of paper demanding four thousand dollars of your hard-earned money.
Before you sign that work order or resign yourself to a massive monthly payment on a new truck, pause and look under the hood. The modern automotive repair industry is built on a model of component replacement rather than diagnostic nuance. Often, the complex computer brain of your truck is simply reacting to corrupted data, throwing catastrophic error messages because a single cheap nerve ending has gone blind.
The Siphon of Misdiagnosis: Understanding the Airway
When your EcoBoost engine stumbles, it is rarely a mechanical catastrophe right out of the gate. Think of the twin turbochargers as a pair of high-powered lungs, constantly inhaling and exhaling under the command of a central nervous system. If that system cannot accurately measure the pressure of the air entering the intake manifold, it panics. It defaults to a fail-safe mode, cutting boost to protect the engine blocks from perceived damage.
This is where the Manifold Absolute Pressure (MAP) sensor comes into play. It is a tiny sentinel tasked with telling the engine control module exactly how much compressed air is entering the cylinders. When this sensor fails or becomes dirty, it sends erratic readings, leading the computer to believe the turbochargers have lost their physical ability to compress air. The computer immediately blames the heavy metal hardware, leaving you to foot the bill for an unnecessary mechanical surgery.
Marcus Vance, a fifty-four-year-old fleet maintenance supervisor in Toledo, Ohio, managed a delivery fleet of over eighty EcoBoost-powered trucks. For years, Marcus watched dealerships swap out entire turbo assemblies on trucks that returned to service only to suffer the same underboost codes three months later. Driven by stubborn curiosity, he began dissecting the discarded components, only to find the turbine wheels pristine and the wastegate actuators perfectly tight; the actual culprit was always a tiny, neglected sensor choked with crankcase vapors.
- Tesla Model Y vegan leather peels instantly after using basic sanitizing wipes
- Toyota Prius 200k-mile lifespans depend entirely on cleaning the battery fan
- Costco Auto Program discounts fail when dealerships mandate their own financing
- Mazda CX-5 used inspections require pressing the infotainment screen corners
- Toyota Land Cruiser markups hide thousands in forced port accessory upgrades
Tailoring the Diagnosis: Where the Carbon Collects
For the Short-Trip Commuter: If your daily drive consists of short trips under fifteen miles, your engine rarely reaches its optimal operating temperature. This prevents the positive crankcase ventilation (PCV) system from fully burning off moisture and oil blowby, leading to a rapid accumulation of sticky sludge directly on your intake sensors.
For the Heavy-Duty Hauler: Towing heavy trailers creates high boost pressures and extreme heat under the hood. Over time, these elevated temperatures bake the oil mist traveling through the intake track, turning a liquid film into a hard, crusty glaze that insulates the sensor’s delicate measuring bulb from reality.
For the High-Mileage Survivor: If your truck has crossed the hundred-thousand-mile threshold, the cumulative effect of oil blowby is unavoidable. Even a perfectly healthy engine will slowly coat its intake path, making the maintenance of these small electronic components a regular necessity rather than a rare emergency repair.
The Ten-Minute Swap: Your Tactical Guide
To reclaim your truck’s performance, you do not need a professional lift or a cabinet full of specialized tools. You only need a quiet half-hour, a T20 Torx driver, and the correct replacement part: Ford Part Number AA5Z-9F479-B (often sold under the Motorcraft name as CX-2231). Pop the hood and locate the plastic engine cover. Directly on top of the black composite intake manifold, toward the very back of the engine bay near the firewall, your target lies directly under the plastic engine cover.
Press down on the gray plastic locking tab of the electrical connector and gently pull the harness free. Use your T20 Torx driver to carefully back out the single retaining screw holding the sensor to the manifold. Keep a firm grip on the screw so it does not fall into the abyss of the engine bay. Gently twist and pull the sensor straight upward out of its mounting hole.

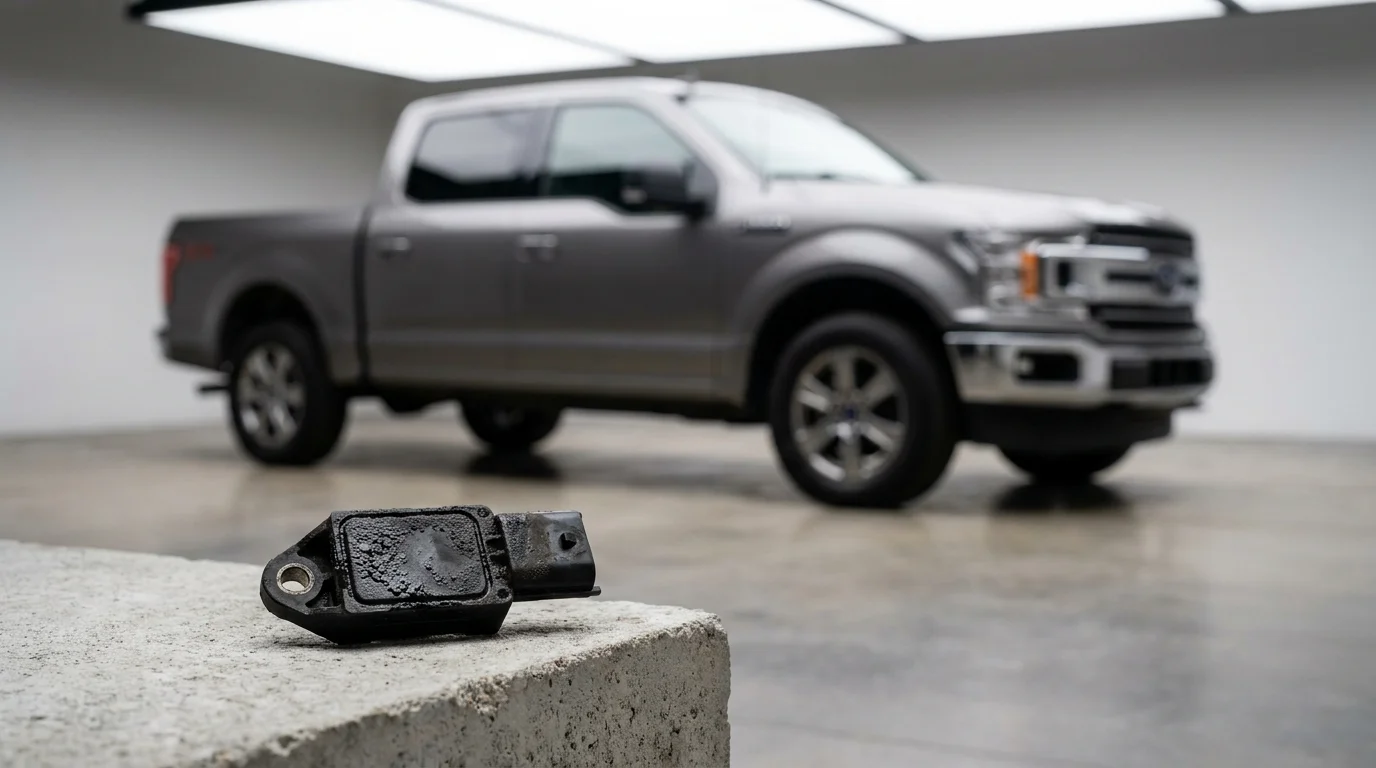

As you pull the old component into the light, you will immediately see the physical proof of the problem: a small black plastic sensor covered in a thick film of oily carbon soot. This dark, sticky residue acts as a thermal blanket, blinding the internal thermistor and pressure diaphragm from the rapid air changes happening inside the manifold. Push the fresh, clean sensor into the mounting hole until the rubber O-ring seats firmly against the plastic manifold. Reinstall the T20 Torx screw until it is snug—do not over-tighten, as the plastic threads can strip easily. Click the electrical harness back into place, clear the stored codes with your scanner, and take your truck for a drive.
Reclaiming Agency Over Your Machine
There is a quiet satisfaction in fixing a complex machine with your own hands, especially when the solution costs less than a tank of premium fuel. By taking the time to understand the physical reality of how your engine reads its environment, you step out of the cycle of helpless consumerism.
Modern trucks are marvels of engineering, but they are also deeply sensitive to the small details. Keeping these tiny pathways clean ensures your truck continues to pull, haul, and run with the same effortless strength it had the day it rolled off the assembly line.
“Diagnostic accuracy is the line between maintaining a vehicle with confidence and throwing money at symptoms instead of causes.” — Marcus Vance, Fleet Maintenance Supervisor
| Key Point | Detail | Added Value for the Reader |
|---|---|---|
| Part Number | Ford AA5Z-9F479-B (Motorcraft CX-2231) | Guarantees OEM fitment and correct pressure calibration parameters. |
| Location | Top rear of plastic intake manifold | Easily accessible without removing heavy engine parts or crawling under the truck. |
| Tool Required | T20 Torx screwdriver | Minimal toolkit needed; avoids expensive specialist labor charges. |
| Primary Symptom | P0299 Underboost Code / Wrench Icon | Prevents misdiagnosis of a physical turbocharger failure. |
Frequently Asked Questions
Will a bad MAP sensor always trigger a Check Engine light? Yes, usually. It typically triggers an underboost code like P0299, or a specific sensor circuit code like P0106, along with a wrench light on your dashboard.
Can I clean the old sensor instead of buying a new one? You can use a specialized, quick-drying electronic cleaner spray, but because these sensors are highly sensitive, a cheap brand-new OEM replacement offers much better long-term reliability.
Where is this sensor located on the 2.7L and 3.5L EcoBoost? On both engines, the primary manifold pressure sensor is mounted directly on top of the plastic intake manifold run towards the back of the engine bay near the firewall.
Does this issue apply to newer F-150 models as well? Yes, carbon buildup is a natural byproduct of direct-injection engines, meaning all model years of the EcoBoost platform can experience this sensor contamination over time.
How often should I inspect or replace this sensor? Inspecting the sensor every thirty thousand miles is a highly effective way to prevent sudden performance drops and annoying false failure codes.
